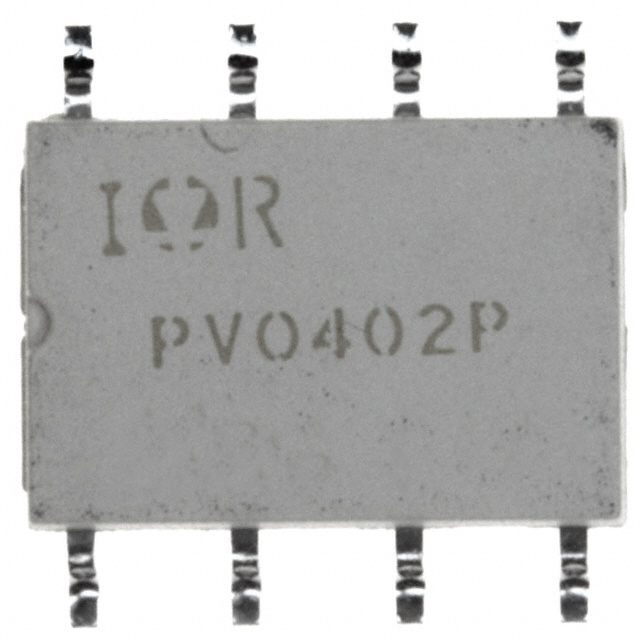

PVO402P
SSR RELAY SPST-NO 120MA 0-400VManufacturer: Infineon Technologies
Categories: Solid State Relays (SSR)
Quality Control: Learn More
Infineon Technologies PVO402P is a Solid State Relay (SSR) from the PVO, HEXFET® series. This single-pole, single-throw normally open (SPST-NO) device features a surface-mount 8-SMD (0.300", 7.62mm) package with gull-wing termination. It is designed for AC and DC loads, offering a maximum load current of 120 mA and a load voltage range of 0 V to 400 V. The on-state resistance is a maximum of 35 Ohms, with an input voltage requirement of 1.2 VDC. Operating within a temperature range of -40°C to 85°C, this component is suitable for applications in industrial automation and telecommunications. The component is supplied in tubes.
Additional Information
Series: PVO, HEXFET®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SMD (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.2VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 120 mA |
| Approval Agency | - |
| Supplier Device Package | Thin-Pak |
| Grade | - |
| Voltage - Load | 0 V ~ 400 V |
| On-State Resistance (Max) | 35 Ohms |
| Qualification | - |
