PVD1052
SSR RELAY SPST-NO 160MA 0-100VManufacturer: Infineon Technologies
Categories: Solid State Relays (SSR)
Quality Control: Learn More

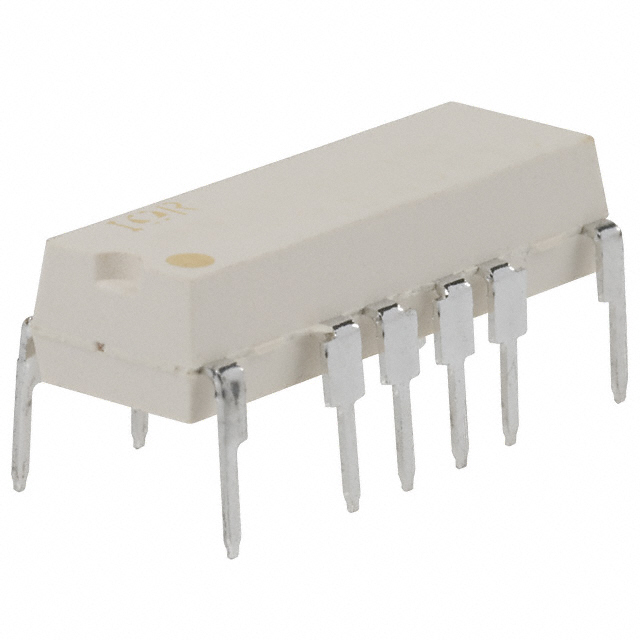

Infineon Technologies PVD1052 is a Solid State Relay (SSR) from the PVD, BOSFET® series. This SPST-NO (1 Form A) device features a 4-lead, 8-DIP (0.300", 7.62mm) package for through-hole mounting. It is designed to switch DC loads with a voltage range of 0V to 100V and a maximum load current of 160mA. The on-state resistance is a maximum of 8 Ohms. The input voltage requirement is 1.2VDC. This component is suitable for applications in industrial automation, medical equipment, and telecommunications. The PVD1052 is UL approved and operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: PVD, BOSFET®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 4 Leads |
| Output Type | DC |
| Mounting Type | Through Hole |
| Voltage - Input | 1.2VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Load Current | 160 mA |
| Approval Agency | UL |
| Supplier Device Package | 8-DIP Modified |
| Grade | - |
| Voltage - Load | 0 V ~ 100 V |
| On-State Resistance (Max) | 8 Ohms |
| Qualification | - |
