IRGS4607DTRRPBF

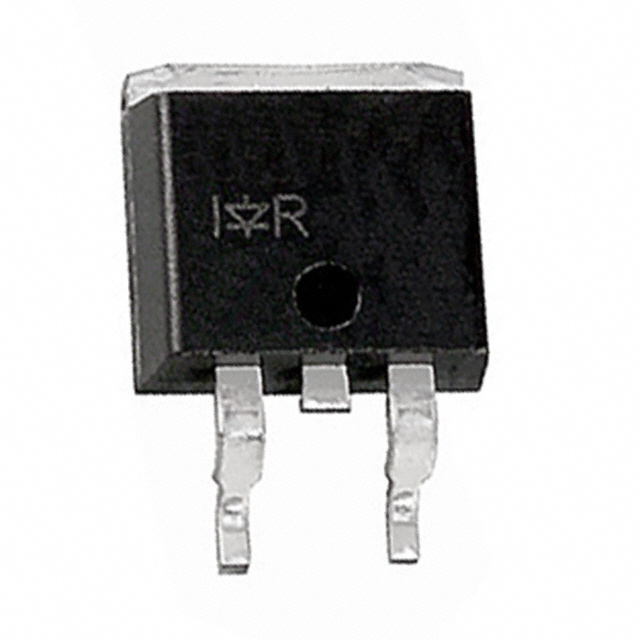

IGBT 600V 11A 58W D2PAKManufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies IGBT, part number IRGS4607DTRRPBF, is a 600V, 11A device in a surface mount D2PAK package. This high-efficiency Insulated Gate Bipolar Transistor (IGBT) offers a continuous collector current of 11A and a pulsed collector current of 12A. Key electrical parameters include a Vce(on) of 2.05V at 15V, 4A, a gate charge of 9 nC, and a maximum power dissipation of 58W. Switching characteristics show an on-state time (Td(on)) of 27ns and an off-state time (Td(off)) of 120ns at 25°C, with a reverse recovery time (trr) of 48ns. The device operates across an extended temperature range of -40°C to 175°C. This component is suitable for applications in power factor correction, industrial motor drives, and power supplies. The IRGS4607DTRRPBF is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 48 ns |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 4A |
| Supplier Device Package | D2PAK |
| IGBT Type | - |
| Td (on/off) @ 25°C | 27ns/120ns |
| Switching Energy | 140µJ (on), 62µJ (off) |
| Test Condition | 400V, 4A, 100Ohm, 15V |
| Gate Charge | 9 nC |
| Current - Collector (Ic) (Max) | 11 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 12 A |
| Power - Max | 58 W |
