IRGPS46160DPBF

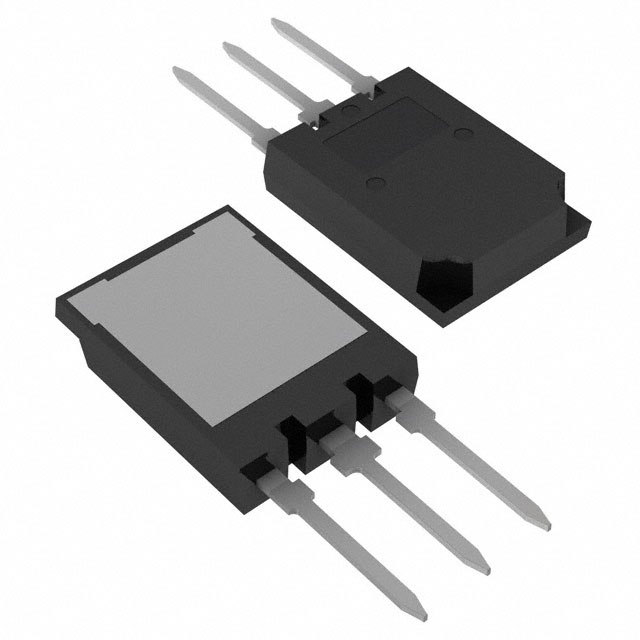

IGBT 600V 240A SUPER247Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies IGBT, Part Number IRGPS46160DPBF, is a robust power semiconductor designed for high-power applications. This component features a 600V collector-emitter breakdown voltage and a continuous collector current capability of 240A, with a pulsed current rating of 360A. The IRGPS46160DPBF offers a maximum power dissipation of 750W and a low on-state voltage of 2.05V at 15V gate-source voltage and 120A collector current. Its switching characteristics include typical turn-on delay (Td(on)) of 80ns and turn-off delay (Td(off)) of 190ns at 25°C, with a reverse recovery time (trr) of 130ns. The gate charge is specified at 240nC. Packaged in a SUPER-247™ (TO-274AA) through-hole configuration, this IGBT operates across a wide temperature range of -55°C to 175°C (TJ). It is commonly utilized in industrial motor drives, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-274AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 130 ns |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 120A |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
| IGBT Type | - |
| Td (on/off) @ 25°C | 80ns/190ns |
| Switching Energy | 5.75mJ (on), 3.43mJ (off) |
| Test Condition | 400V, 120A, 4.7Ohm, 15V |
| Gate Charge | 240 nC |
| Current - Collector (Ic) (Max) | 240 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 360 A |
| Power - Max | 750 W |
