IRGP4063PBF
IGBT 600V 96A 330W TO247ACManufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench 600 V 96 A 330 W Through Hole TO-247AC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.14V @ 15V, 48A |
| Supplier Device Package | TO-247AC |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 60ns/145ns |
| Switching Energy | 625µJ (on), 1.28mJ (off) |
| Test Condition | 400V, 48A, 10Ohm, 15V |
| Gate Charge | 95 nC |
| Current - Collector (Ic) (Max) | 96 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 144 A |
| Power - Max | 330 W |
Request a Quote
Clients Also Buy
AIKB50N65DF5ATMA1
DISCRETE SWITCHES

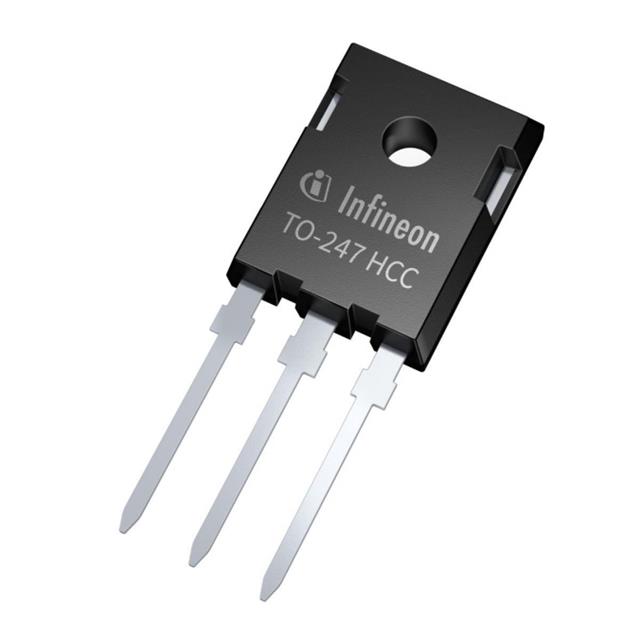

IKWH60N65WR6XKSA1
