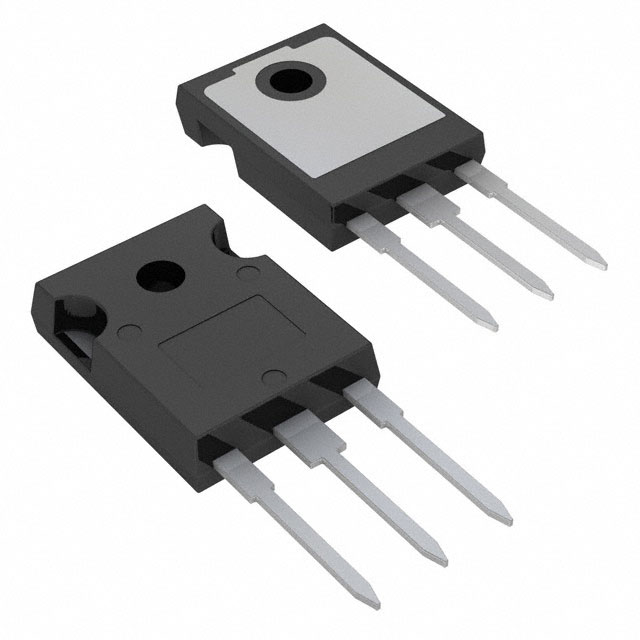

IRGP30B60KD-EP
IGBT 600V 60A 304W TO247ADManufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT NPT 600 V 60 A 304 W Through Hole TO-247AD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 125 ns |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 30A |
| Supplier Device Package | TO-247AD |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 46ns/185ns |
| Switching Energy | 350µJ (on), 825µJ (off) |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Gate Charge | 102 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 304 W |
