IRG4PSH71KD

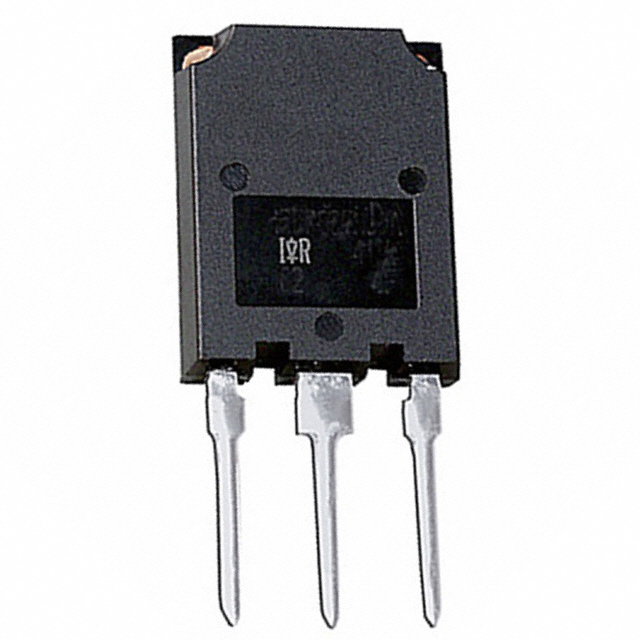

IGBT 1200V 78A 350W SUPER247Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
The Infineon Technologies IRG4PSH71KD is a high-performance IGBT component designed for demanding applications. This Super-247™ (TO-274AA) packaged device features a collector-emitter breakdown voltage of 1200 V and a continuous collector current capability of 78 A, with a pulsed current rating of 156 A. It offers a maximum power dissipation of 350 W and a low on-state voltage of 3.9 V at 15 V gate-emitter voltage and 42 A collector current. The device exhibits a gate charge of 410 nC, with typical turn-on and turn-off delays of 67 ns and 230 ns respectively at 25°C, and a reverse recovery time of 107 ns. Switching energy is rated at 5.68 mJ (on) and 3.23 mJ (off) under test conditions of 800 V, 42 A, 5 Ohm, and 15 V. This component is suitable for use in industrial power supplies, motor control, and welding equipment. It is supplied in a bag package.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-274AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 107 ns |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 42A |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
| IGBT Type | - |
| Td (on/off) @ 25°C | 67ns/230ns |
| Switching Energy | 5.68mJ (on), 3.23mJ (off) |
| Test Condition | 800V, 42A, 5Ohm, 15V |
| Gate Charge | 410 nC |
| Current - Collector (Ic) (Max) | 78 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 156 A |
| Power - Max | 350 W |
