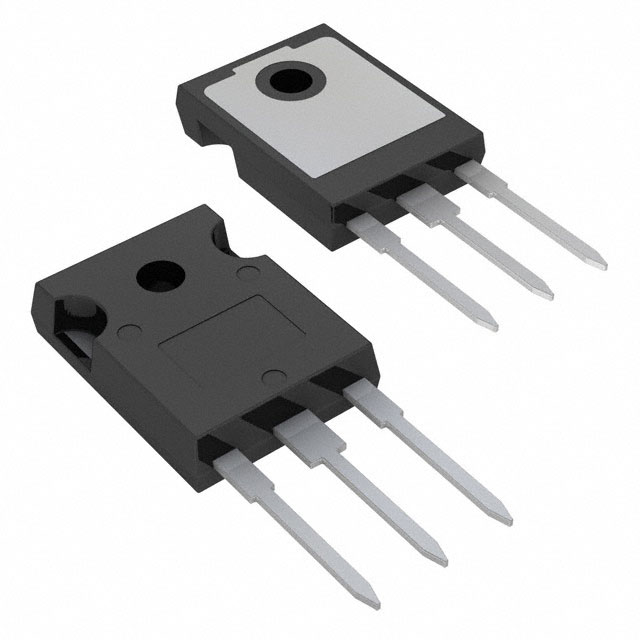

IRG4PC30KDPBF
IGBT 600V 28A TO247ACManufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies IGBT IRG4PC30KDPBF is a high-performance power semiconductor component designed for demanding applications. This device features a 600V collector-emitter breakdown voltage and a continuous collector current rating of 28A, with a pulsed current capability of 58A (Icm). The Vce(on) is specified at a maximum of 2.7V at 15V Vge and 16A Ic, with typical on/off delays of 60ns/160ns at 25°C. With a power dissipation of 100W and a gate charge of 67nC, it offers efficient switching characteristics, demonstrated by its switching energy figures of 600µJ (on) and 580µJ (off) under test conditions of 480V, 16A, 23 Ohm, 15V. The IRG4PC30KDPBF is housed in a TO-247-3 package, suitable for through-hole mounting, and operates across a wide temperature range of -55°C to 150°C (TJ). This component finds application in power supply units, motor control, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 42 ns |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 16A |
| Supplier Device Package | TO-247AC |
| IGBT Type | - |
| Td (on/off) @ 25°C | 60ns/160ns |
| Switching Energy | 600µJ (on), 580µJ (off) |
| Test Condition | 480V, 16A, 23Ohm, 15V |
| Gate Charge | 67 nC |
| Current - Collector (Ic) (Max) | 28 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 58 A |
| Power - Max | 100 W |
