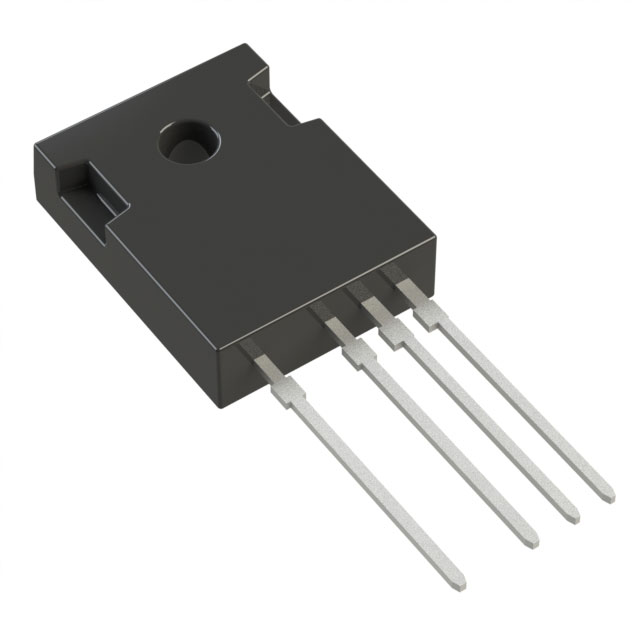

IKZA50N120CH7XKSA1
IGBT TRENCH FS 1200V 100A TO247Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 1200 V 100 A 398 W Through Hole PG-TO247-4-U02
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 96 ns |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 50A |
| Supplier Device Package | PG-TO247-4-U02 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 39ns/333ns |
| Switching Energy | 950µJ (on), 1.42mJ (off) |
| Test Condition | - |
| Gate Charge | 372 nC |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 398 W |
Request a Quote
