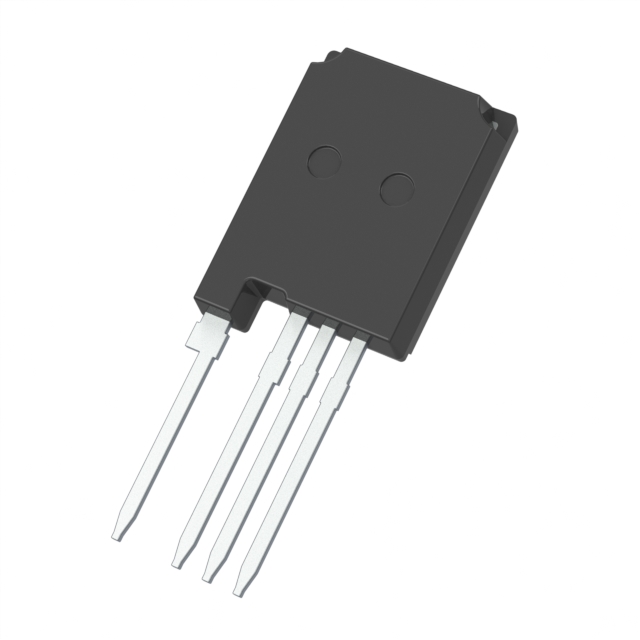

IKY40N120CS6XKSA1
IGBT TRENCH FS 1200V 80A TO247-4Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies TrenchStop™ IKY40N120CS6XKSA1 is a Trench Field Stop Insulated Gate Bipolar Transistor (IGBT) designed for demanding power applications. This component features a robust 1200 V collector-emitter breakdown voltage and a continuous collector current rating of 80 A, with a pulsed capability of 160 A. The Vce(on) is specified at 2.15 V maximum at 15 V gate-emitter voltage and 40 A collector current. With a maximum power dissipation of 500 W and a switching energy of 1.45 mJ (on) and 1.55 mJ (off) at 600 V, 40 A, 9 Ohm, 15 V test conditions, it offers efficient switching performance. The device is housed in a PG-TO247-4-2 package for through-hole mounting and operates across a temperature range of -40°C to 175°C. This IGBT is commonly utilized in industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 255 ns |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 40A |
| Supplier Device Package | PG-TO247-4-2 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 27ns/315ns |
| Switching Energy | 1.45mJ (on), 1.55mJ (off) |
| Test Condition | 600V, 40A, 9Ohm, 15V |
| Gate Charge | 285 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Power - Max | 500 W |
