IKY100N120CH7XKSA1

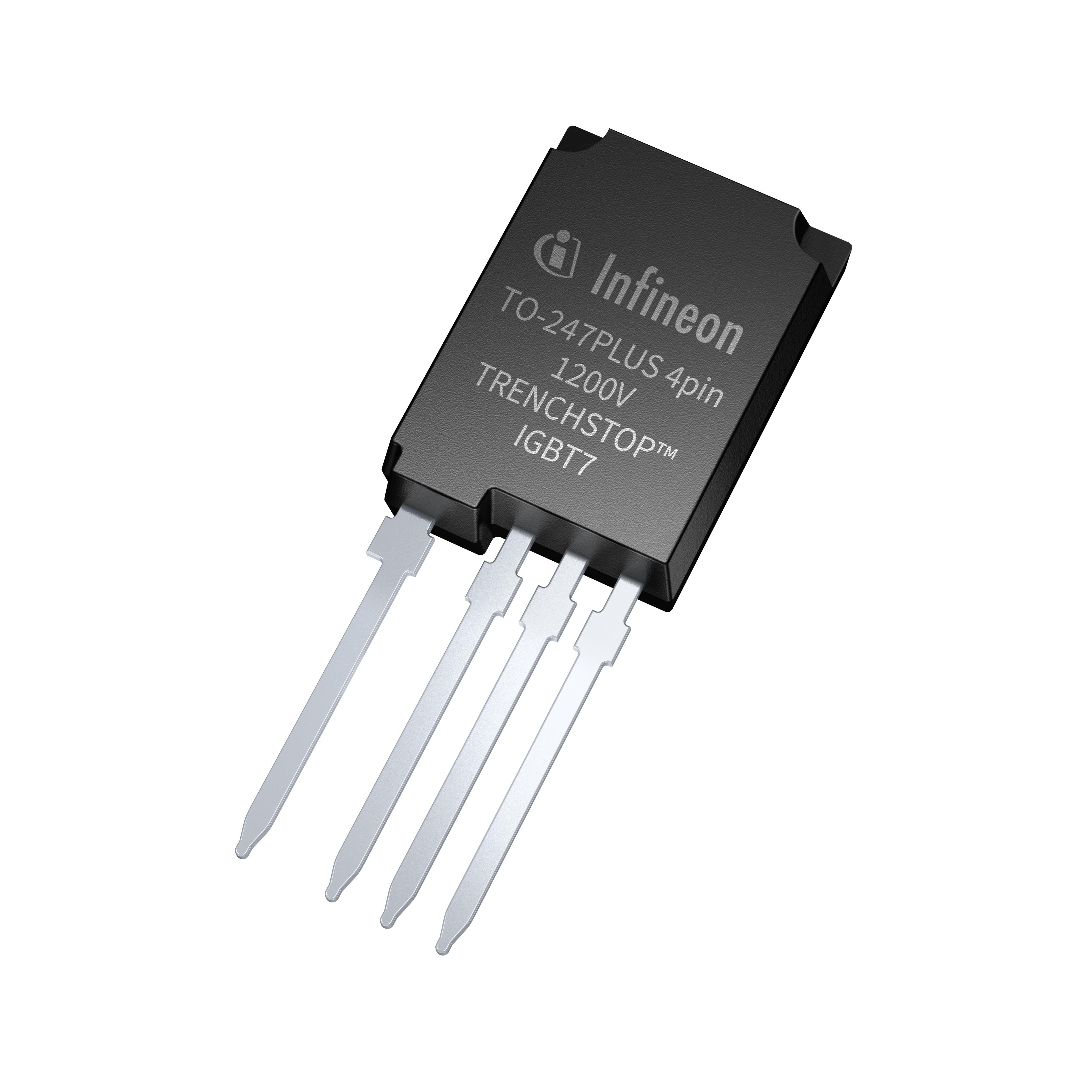

IGBT TRENCH FS 1200V 212A TO247Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies TRENCHSTOP™ IKY100N120CH7XKSA1 is a Trench Field Stop Insulated Gate Bipolar Transistor (IGBT) designed for high-power applications. This component features a 1200 V collector-emitter breakdown voltage and a maximum continuous collector current of 212 A, with a pulsed current capability of 400 A. The IGBT type is Trench Field Stop, offering optimized switching characteristics with a switching energy of 2.37 mJ (on) and 2.65 mJ (off) at specified test conditions. The saturation voltage (Vce(on)) is a maximum of 2.15 V at 15 V gate-emitter voltage and 100 A collector current. The device has a gate charge of 714 nC. Packaged in a PG-TO247-4-U10, it supports through-hole mounting and operates within a temperature range of -40°C to 175°C. It is suitable for power factor correction, motor drives, and renewable energy systems.
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 99 ns |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 100A |
| Supplier Device Package | PG-TO247-4-U10 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 44ns/359ns |
| Switching Energy | 2.37mJ (on), 2.65mJ (off) |
| Test Condition | - |
| Gate Charge | 714 nC |
| Current - Collector (Ic) (Max) | 212 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 400 A |
| Power - Max | 721 W |
