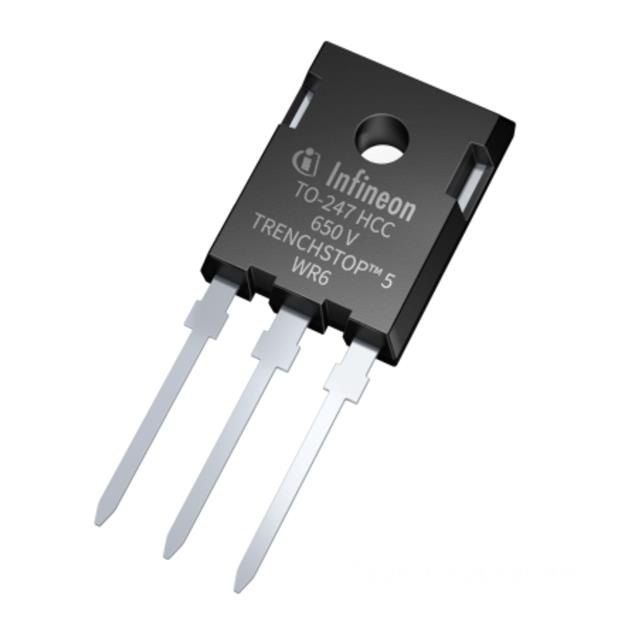

IKWH70N65WR6XKSA1
IGBT TRENCH FS 650V 122A TO247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 122 A 290 W Through Hole PG-TO247-3-32
Additional Information
Series: TrenchStop™ 5 WR6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 70A |
| Supplier Device Package | PG-TO247-3-32 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 42ns/378ns |
| Switching Energy | 2.2mJ (on), 1.07mJ (off) |
| Test Condition | 400V, 70A, 15Ohm, 15V |
| Gate Charge | 269 nC |
| Current - Collector (Ic) (Max) | 122 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 210 A |
| Power - Max | 290 W |
Request a Quote
Clients Also Buy
IKWH60N65WR6XKSA1
IGBT TRENCH FS 650V 100A TO247-3
IKWH40N65WR6XKSA1
IGBT TRENCH 650V 75A TO247-3

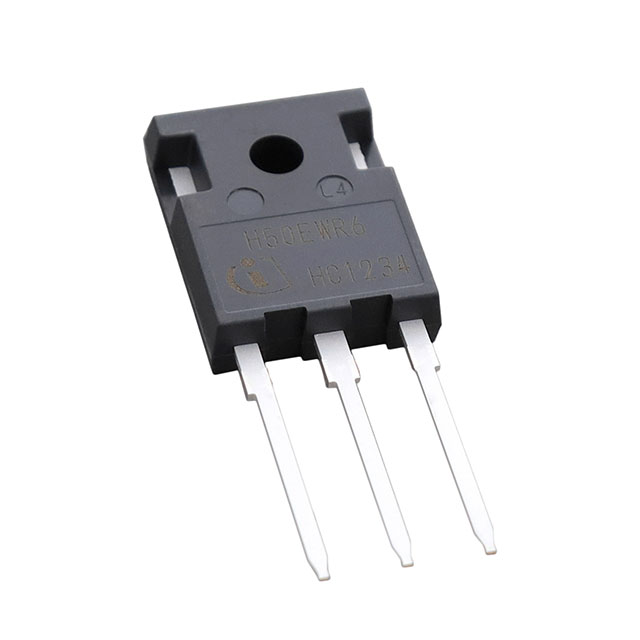

IKWH50N65WR6XKSA1
