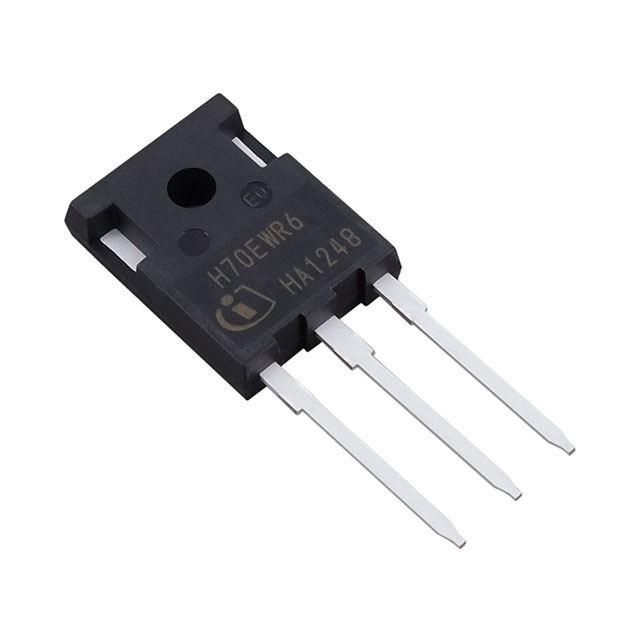

IKWH50N65EH7XKSA1
IGBT TRENCH FS 650V 80A TO247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 80 A 249 W Through Hole PG-TO247-3-32
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 76 ns |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 50A |
| Supplier Device Package | PG-TO247-3-32 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 19ns/147ns |
| Switching Energy | 1.27mJ (on), 650µJ (off) |
| Test Condition | 400V, 50A, 10Ohm, 15V |
| Gate Charge | 102 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 249 W |
| Qualification | - |
Request a Quote
