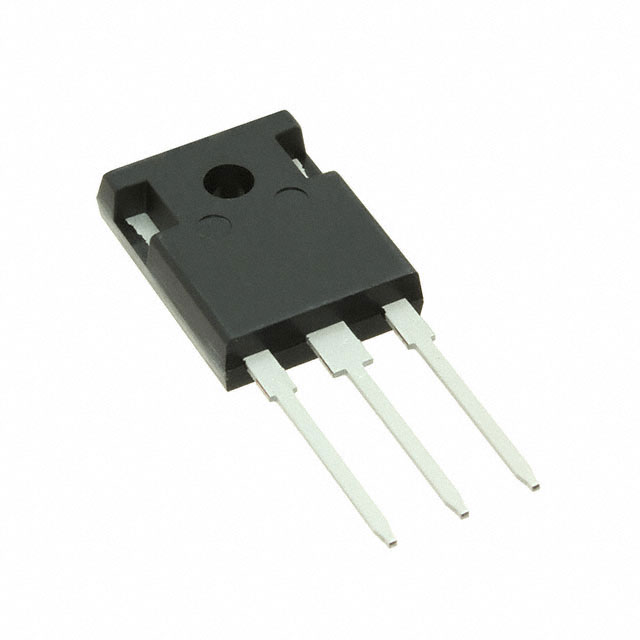

IKW75N60TAFKSA1
IGBT TRENCH/FS 600V 80A TO247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies TrenchStop® IGBT, part number IKW75N60TAFKSA1, is a 600V, 80A Trench Field Stop Insulated Gate Bipolar Transistor. This component features a collector current (Ic) of 80A and a pulsed collector current (Icm) of 225A. The collector-emitter saturation voltage (Vce(on)) is 2V at 15V gate-emitter voltage and 75A collector current. With a maximum power dissipation of 428W and a junction-to-ambient thermal resistance suitable for its through-hole mounting in the PG-TO247-3-1 package, the IKW75N60TAFKSA1 is engineered for demanding applications. Key parameters include a gate charge of 470 nC and a reverse recovery time (trr) of 121ns. The device is rated for an operating temperature range of -40°C to 175°C (TJ). This IGBT is suitable for use in power factor correction, motor drives, and uninterruptible power supplies.
Additional Information
Series: TrenchStop®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 121 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 75A |
| Supplier Device Package | PG-TO247-3-1 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 33ns/330ns |
| Switching Energy | 4.5mJ |
| Test Condition | 400V, 75A, 5Ohm, 15V |
| Gate Charge | 470 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 225 A |
| Power - Max | 428 W |
