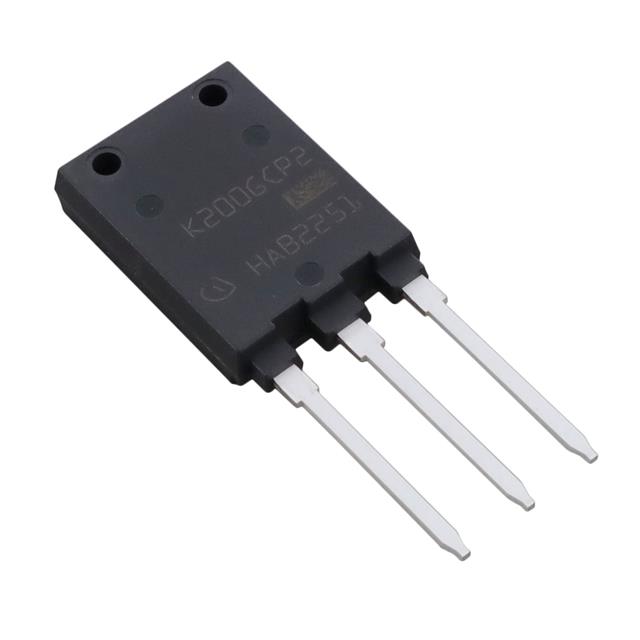

IKQB200N75CP2AKSA1
IGBT 750V 200A TO247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT 750 V 200 A 937 W Through Hole PG-TO247-3-51
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 200A |
| Supplier Device Package | PG-TO247-3-51 |
| IGBT Type | - |
| Td (on/off) @ 25°C | 95ns/407ns |
| Switching Energy | 14.4mJ (on), 6.9mJ (off) |
| Test Condition | 450V, 200A, 4.8Ohm, 15V |
| Gate Charge | 797 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 750 V |
| Current - Collector Pulsed (Icm) | 600 A |
| Power - Max | 937 W |
| Qualification | - |
