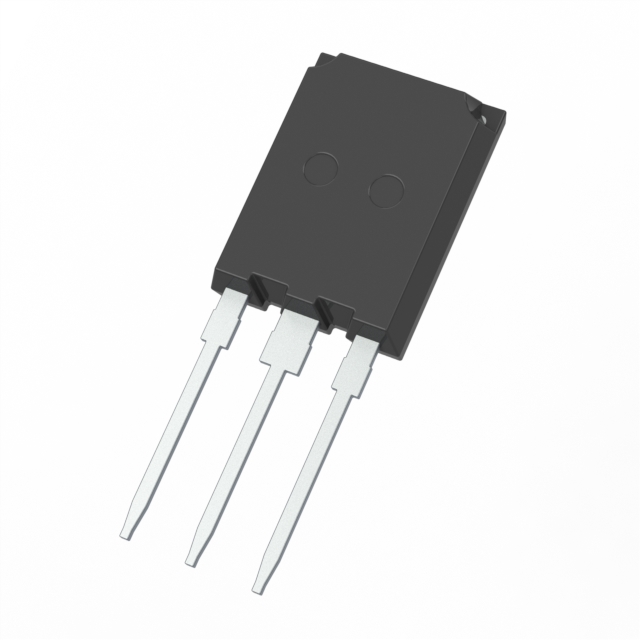

IKQ140N120CH7XKSA1
IGBT TRENCH FS 1200V 175A TO247Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies TRENCHSTOP™ IKQ140N120CH7XKSA1 is a Trench Field Stop Insulated Gate Bipolar Transistor (IGBT). This component offers a 1200 V collector-emitter breakdown voltage and a continuous collector current capability of 175 A, with a pulsed current rating of 560 A. The IKQ140N120CH7XKSA1 features a low on-state voltage of 2.15 V at 15 V gate-emitter voltage and 140 A collector current. It is designed for high power applications with a maximum power dissipation of 962 W. Key switching parameters include a gate charge of 970 nC, switching energies of 8.84 mJ (on) and 3.38 mJ (off), and turn-on/turn-off delays of 68 ns/541 ns at 25°C. The device operates within an extended temperature range from -40°C to 175°C. Packaged in a PG-TO247-3-U01 for through-hole mounting, this IGBT is suitable for demanding applications in industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 144 ns |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 140A |
| Supplier Device Package | PG-TO247-3-U01 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 68ns/541ns |
| Switching Energy | 8.84mJ (on), 3.38mJ (off) |
| Test Condition | - |
| Gate Charge | 970 nC |
| Current - Collector (Ic) (Max) | 175 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 560 A |
| Power - Max | 962 W |
