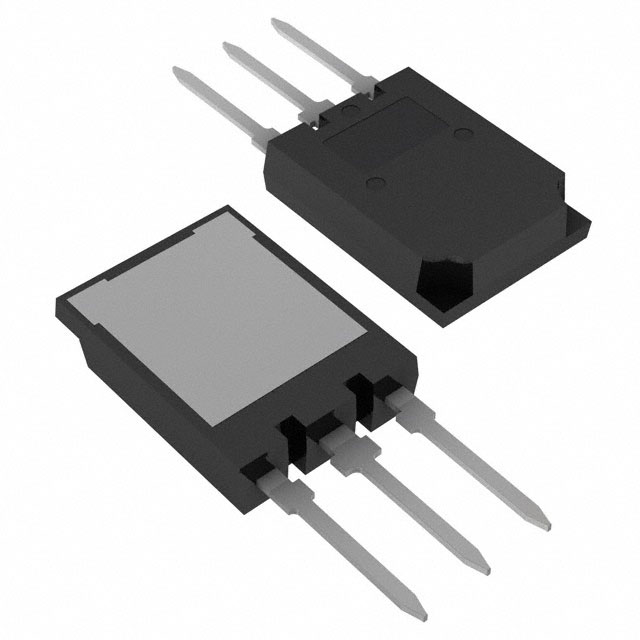

IKQ120N60TXKSA1
IGBT TRENCH FS 600V 160A TO247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies presents the IKQ120N60TXKSA1, a TrenchStop™ series IGBT designed for high-power switching applications. This device features a 600 V collector-emitter breakdown voltage and a continuous collector current of 160 A, with a pulsed capability of 480 A. It offers a low on-state voltage (Vce(on)) of 2 V at 15 V gate-emitter voltage and 120 A collector current, supported by a 703 nC gate charge. The optimized trench field-stop architecture contributes to efficient switching characteristics, with switching energies of 6.2 mJ (on) and 5.9 mJ (off) at the specified test conditions. With a maximum power dissipation of 833 W and an operating temperature range of -40°C to 175°C, this IGBT is suitable for demanding industrial power supplies, motor drives, and renewable energy systems. The component is supplied in a PG-TO247-3 package suitable for through-hole mounting.
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 241 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 120A |
| Supplier Device Package | PG-TO247-3-46 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 50ns/565ns |
| Switching Energy | 6.2mJ (on), 5.9mJ (off) |
| Test Condition | 400V, 120A, 3Ohm, 15V |
| Gate Charge | 703 nC |
| Current - Collector (Ic) (Max) | 160 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 480 A |
| Power - Max | 833 W |
Request a Quote
Clients Also Buy
AIKW50N60CTXKSA1
IC DISCRETE 600V TO247-3

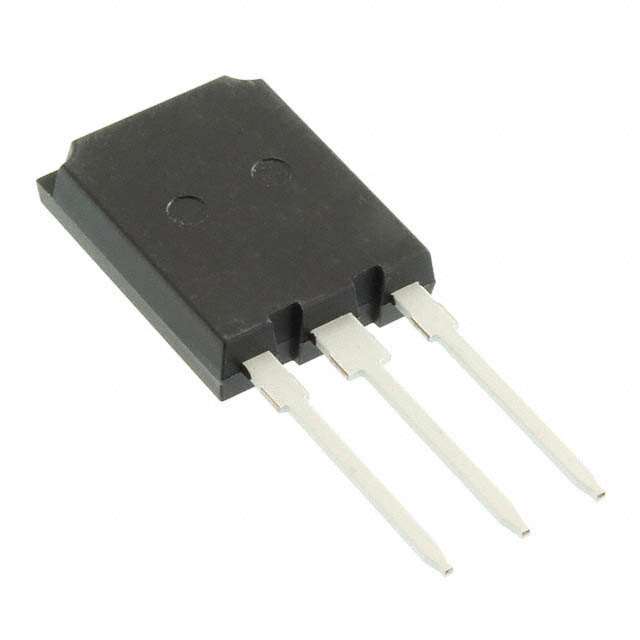

IKQ75N120CS6XKSA1
