IKQ100N60TAXKSA1

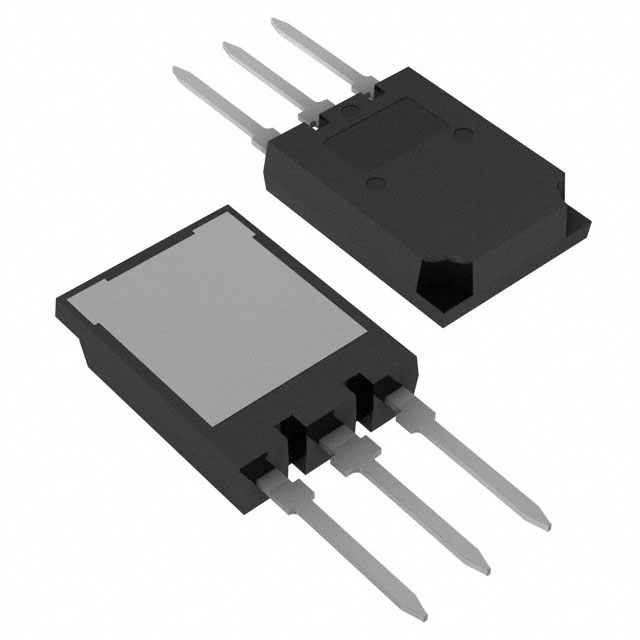

IGBT 600V TO247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies TrenchStop™ IKQ100N60TAXKSA1 is a 600V, 160A automotive-grade IGBT designed for high-power switching applications. This Trench Field Stop IGBT features a low collector-emitter saturation voltage (Vce(on)) of 2V at 15V gate voltage and 100A collector current, ensuring efficient operation. With a maximum continuous collector current of 160A and a pulsed capability of 400A, it is suitable for demanding power conversion tasks. The device offers a maximum power dissipation of 714W and a low switching energy of 3.1mJ (on) and 2.5mJ (off) under test conditions of 400V, 100A, 3.6 Ohms, and 15V. The gate charge is 610 nC, contributing to its dynamic performance. Packaged in a PG-TO247-3-46 through-hole configuration, this component operates within a temperature range of -40°C to 175°C. Its AEC-Q101 qualification makes it reliable for automotive and industrial power systems.
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 225 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 100A |
| Supplier Device Package | PG-TO247-3-46 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 30ns/290ns |
| Switching Energy | 3.1mJ (on), 2.5mJ (off) |
| Test Condition | 400V, 100A, 3.6Ohm, 15V |
| Gate Charge | 610 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 160 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 400 A |
| Power - Max | 714 W |
| Qualification | AEC-Q101 |
