IKN03N60RC2ATMA1
IGBT 600V 5.7A SOT223-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More

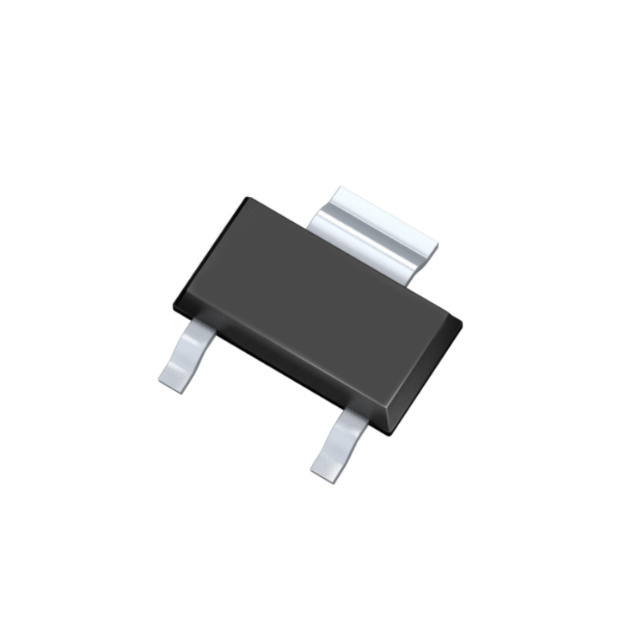

IGBT 600 V 5.7 A 6.3 W Surface Mount PG-SOT223-3-1
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 38 ns |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 3A |
| Supplier Device Package | PG-SOT223-3-1 |
| IGBT Type | - |
| Td (on/off) @ 25°C | 7ns/77.5ns |
| Switching Energy | 62µJ (on), 44µJ (off) |
| Test Condition | 400V, 3A, 49Ohm, 15V |
| Gate Charge | 18 nC |
| Current - Collector (Ic) (Max) | 5.7 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 9 A |
| Power - Max | 6.3 W |
