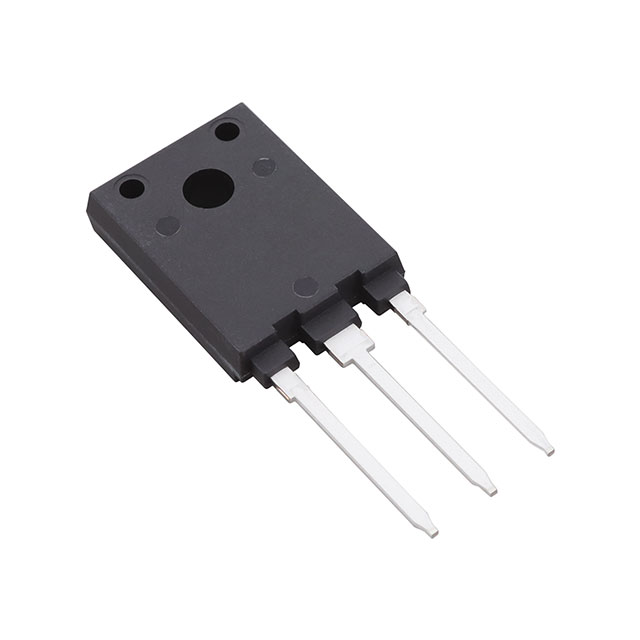

IKFW40N65DH5XKSA1
HOME APPLIANCES 14 PG-HSIP247-3Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 53 A 106 W Through Hole PG-HSIP247-3-2
Additional Information
Series: TrenchStop™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 64 ns |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 40A |
| Supplier Device Package | PG-HSIP247-3-2 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 18ns/105ns |
| Switching Energy | 1.17mJ (on), 500µJ (off) |
| Test Condition | 400V, 40A, 14Ohm, 15V |
| Gate Charge | 70 nC |
| Current - Collector (Ic) (Max) | 53 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 106 W |
Request a Quote
