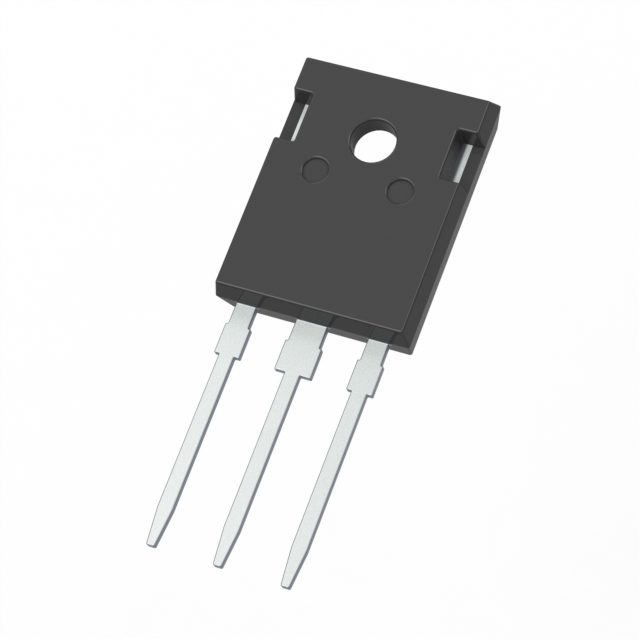

IHW40N140R5LXKSA1
IGBT 1400V 80A TO247-44Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
IGBT 1400 V 80 A 366 W Through Hole PG-TO247-44
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 40A |
| Supplier Device Package | PG-TO247-44 |
| IGBT Type | - |
| Td (on/off) @ 25°C | -/225ns |
| Switching Energy | -, 240µJ (off) |
| Test Condition | 25V, 40A, 2.2Ohm, 15V |
| Gate Charge | 260 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 1400 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 366 W |
| Qualification | - |
