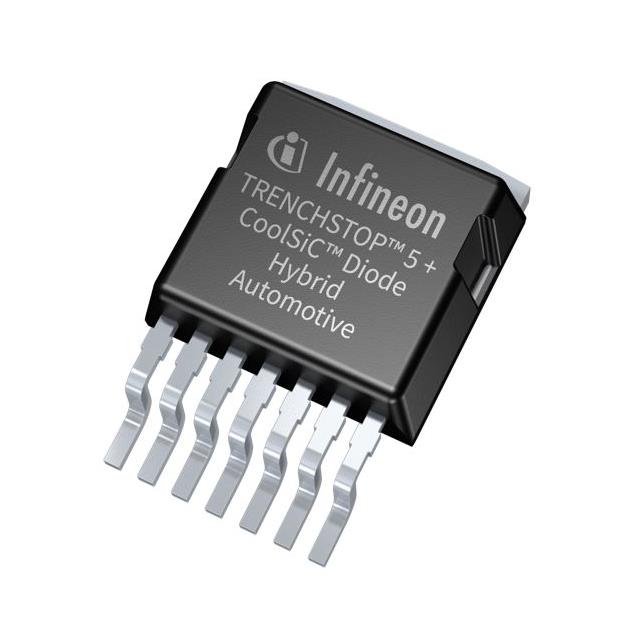

AIKBE50N65RF5ATMA1
IGBT TRENCH FS 650V 96A TO263-7Manufacturer: Infineon Technologies
Categories: Single IGBTs
Quality Control: Learn More
Infineon Technologies CoolSiC™ AIKBE50N65RF5ATMA1 is a Trench Field Stop IGBT designed for high-performance applications. This automotive-grade component features a 650 V collector-emitter breakdown voltage and a continuous collector current of 96 A, with a pulsed capability of 150 A. Optimized for efficiency, it offers low switching energies of 120 µJ on and 90 µJ off, with typical switching times of 16.8 ns (on) and 136 ns (off) at 25°C. The IGBT exhibits a maximum on-state voltage of 2.1 V at 15 V gate-emitter voltage and 50 A collector current. Its high thermal performance is supported by a maximum power dissipation of 326 W and an operating temperature range of -40°C to 175°C. Packaged in a PG-TO263-7-U04 (TO-263-8, D2PAK) surface-mount package and supplied on tape and reel, this device is suitable for demanding automotive power systems.
Additional Information
Series: CoolSiC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A |
| Supplier Device Package | PG-TO263-7-U04 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 16.8ns/136ns |
| Switching Energy | 120µJ (on), 90µJ (off) |
| Test Condition | 400V, 25A, 9Ohm, 15V |
| Gate Charge | 108 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 96 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 150 A |
| Power - Max | 326 W |
| Qualification | AEC-Q101 |
