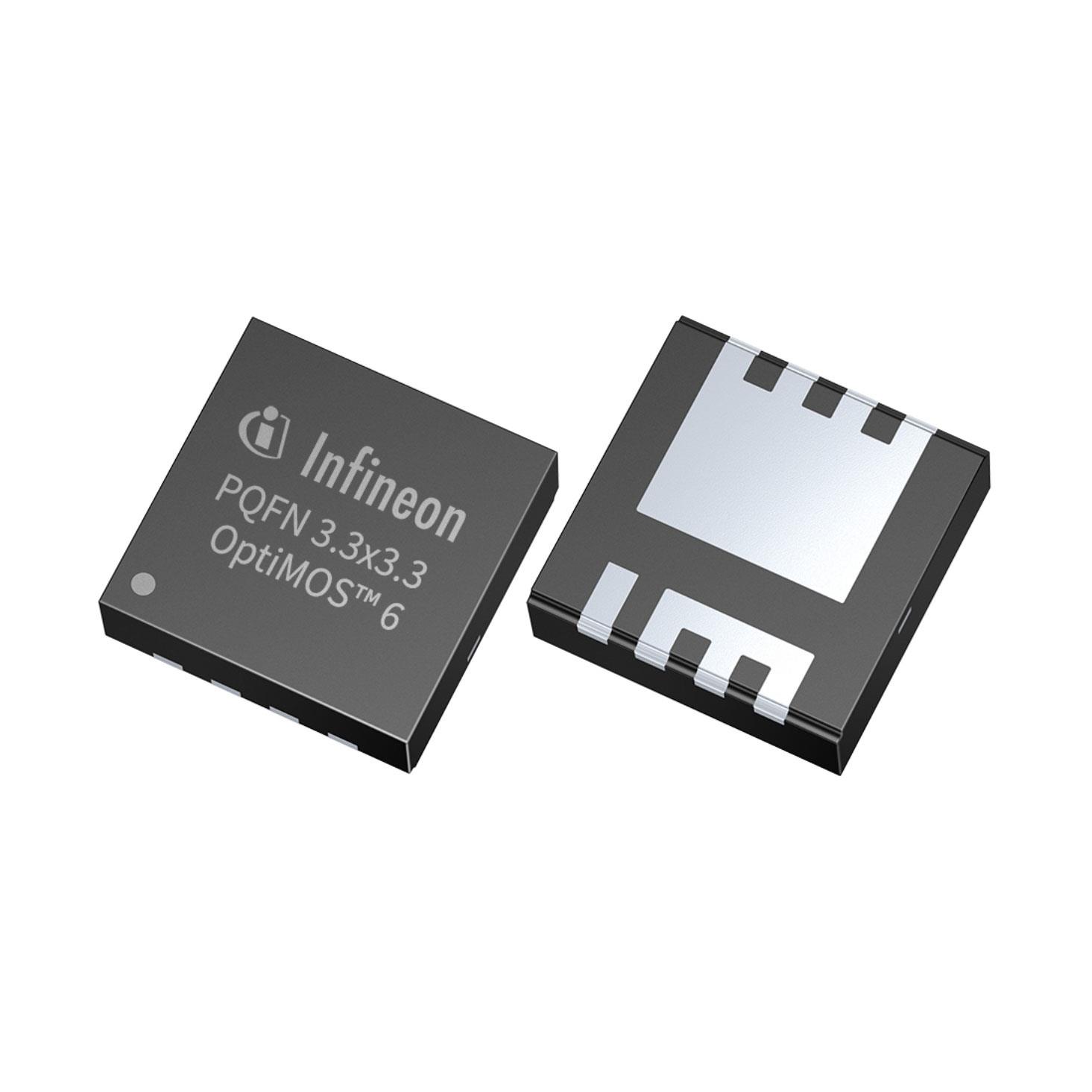

ISZ520N20NM6ATMA1
TRENCH >=100VManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 200 V 4.5A (Ta), 26A (Tc) 2.5W (Ta), 88W (Tc) Surface Mount PG-TSDSON-8-34
Additional Information
Series: OptiMOS™ 6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 26A (Tc) |
| Rds On (Max) @ Id, Vgs | 47.8mOhm @ 15A, 15V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 88W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 31µA |
| Supplier Device Package | PG-TSDSON-8-34 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 15V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 200 V |
| Gate Charge (Qg) (Max) @ Vgs | 14.9 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 960 pF @ 100 V |
| Qualification | - |
