ISZ173N15NM6ATMA1
TRENCH >=100VManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 7.9A (Ta), 48A (Tc) 2.5W (Ta), 94W (Tc) Surface Mount PG-TSDSON-8 FL
Additional Information
Series: OptiMOS™ 6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 7.9A (Ta), 48A (Tc) |
| Rds On (Max) @ Id, Vgs | 16.3mOhm @ 16A, 15V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 94W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 35µA |
| Supplier Device Package | PG-TSDSON-8 FL |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 15V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 19.2 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 75 V |
| Qualification | - |
Request a Quote
Clients Also Buy
IPT026N12NM6ATMA1
IPT026N12NM6ATMA1

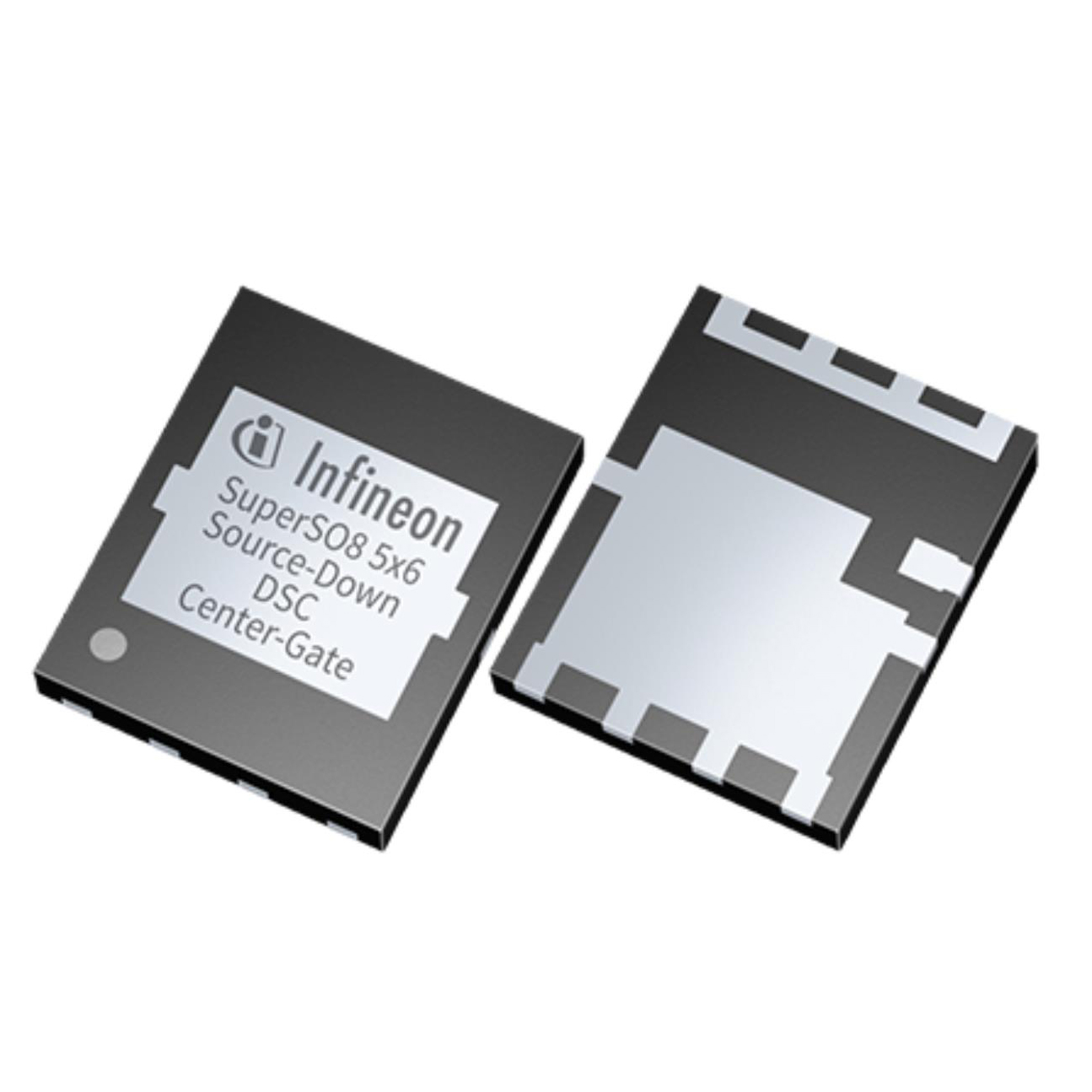

IQD005N04NM6CGSCATMA1
OPTIMOS POWER MOSFETS 25 V - 150

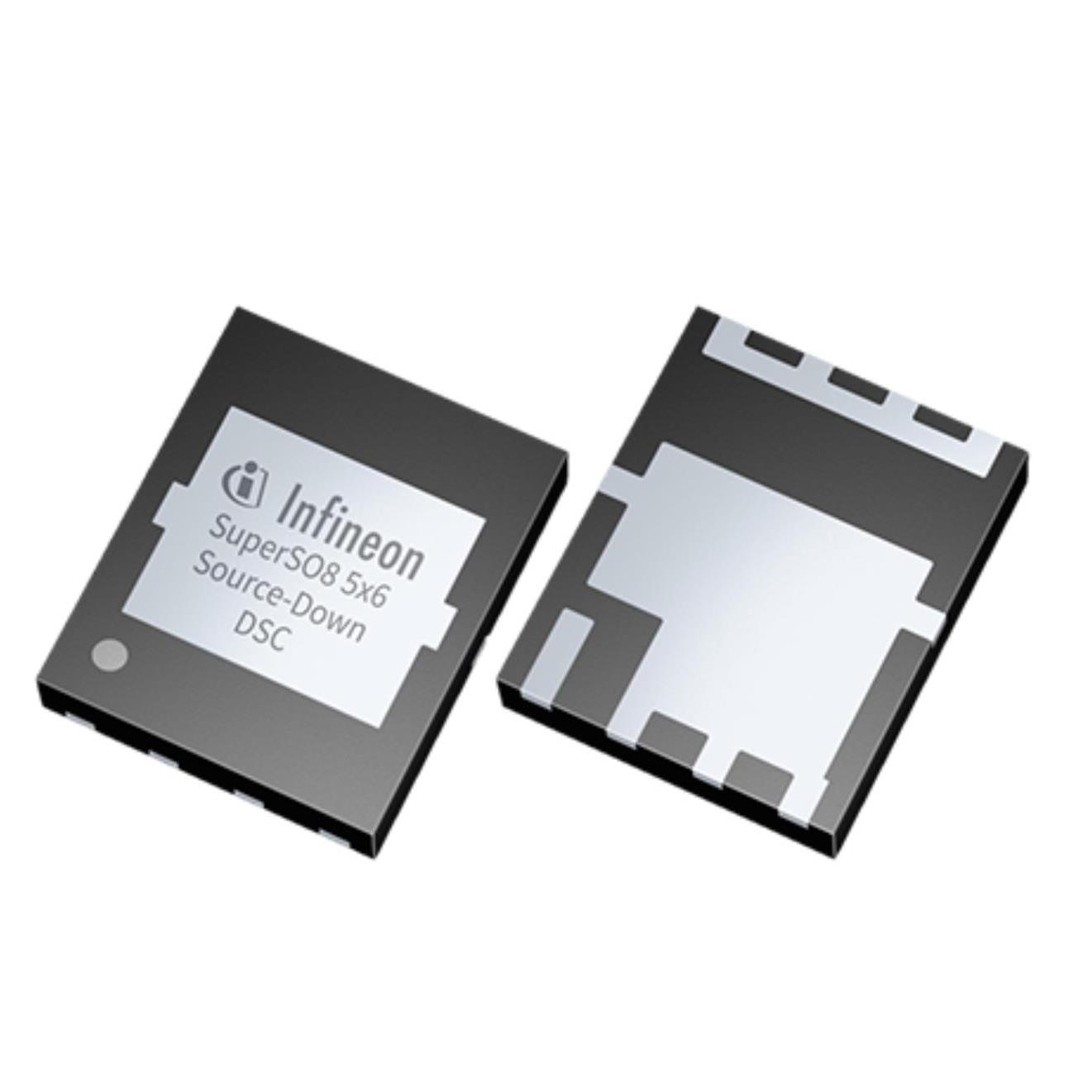

IQD005N04NM6SCATMA1
