IRLU4343PBF
MOSFET N-CH 55V 26A I-PAKManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More

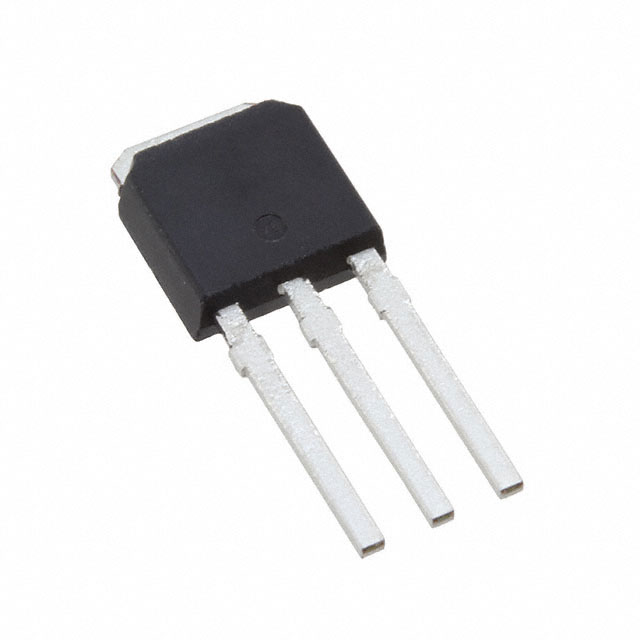

Infineon Technologies HEXFET® N-Channel Power MOSFET, part number IRLU4343PBF, offers a 55V drain-source voltage and a continuous drain current of 26A at 25°C (Tc). This through-hole component, packaged in an IPAK (TO-251-3 Short Leads), features a maximum power dissipation of 79W (Tc). With a low Rds On of 50mOhm at 4.7A and 10V Vgs, and a gate charge of 42nC at 10V, it is suitable for applications requiring efficient switching. The operating temperature range is -55°C to 175°C (TJ). Industries utilizing this component include automotive and industrial power control.
Additional Information
Series: HEXFET®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 4.7A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 79W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | IPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 55 V |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 740 pF @ 50 V |
