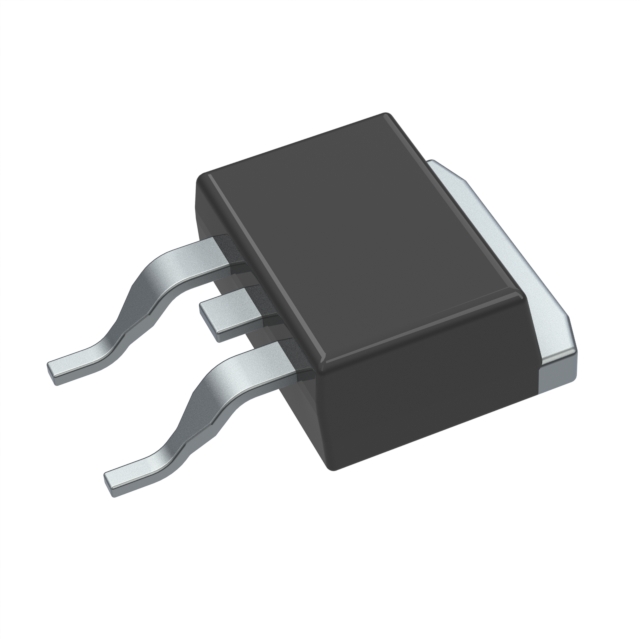

IRL40S212ARMA1
MOSFET N-CH 40V 195A D2PAKManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 195A (Tc) 231W (Tc) Surface Mount PG-TO263-3
Additional Information
Series: HEXFET®, StrongIRFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 195A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 100A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 231W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 150µA |
| Supplier Device Package | PG-TO263-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 137 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8320 pF @ 25 V |
