IRFU1205PBF
MOSFET N-CH 55V 44A IPAKManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More

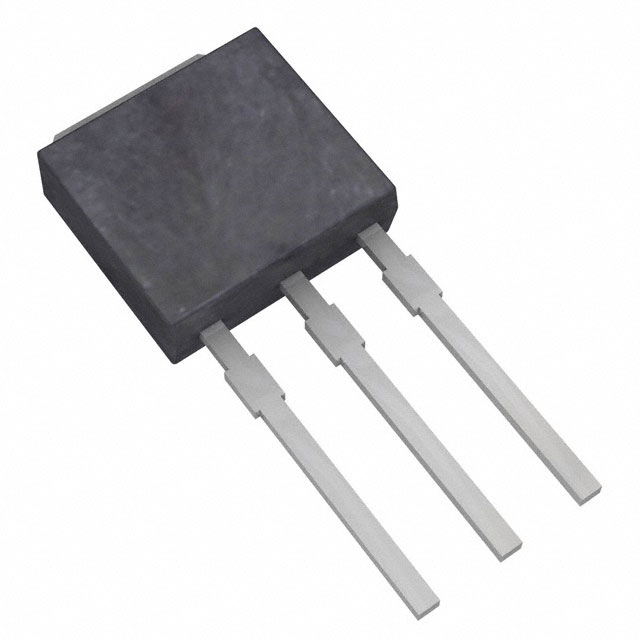

Infineon Technologies HEXFET® IRFU1205PBF is an N-channel power MOSFET designed for high-efficiency switching applications. This component features a Drain-Source Voltage (Vdss) of 55V and a continuous Drain Current (Id) of 44A at 25°C (Tc), with a maximum power dissipation of 107W (Tc). The Rds(On) is specified at 27mOhm at 26A and 10V gate drive. Key parameters include a Gate Charge (Qg) of 65 nC and Input Capacitance (Ciss) of 1300 pF. The device operates within a temperature range of -55°C to 175°C (TJ) and is housed in an IPAK (TO-251AA) package for through-hole mounting. This MOSFET is suitable for use in automotive, industrial power control, and power supply applications.
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 26A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 107W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | IPAK (TO-251AA) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 55 V |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 25 V |
