IRFR13N20DTR
MOSFET N-CH 200V 13A DPAKManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies HEXFET® IRFR13N20DTR is an N-channel power MOSFET designed for robust performance in demanding applications. This component features a Drain-Source Voltage (Vdss) of 200V and a continuous drain current (Id) of 13A at 25°C (Tc), with a maximum power dissipation of 110W (Tc). The Rds On is specified at a maximum of 235mOhm at 8A and 10V gate drive. Key parameters include a gate charge (Qg) of 38 nC at 10V and an input capacitance (Ciss) of 830 pF at 25V. The device utilizes a TO-252AA (DPAK) surface mount package, supplied on tape and reel. This HEXFET® is suitable for applications in industrial power supplies, motor control, and automotive systems. The operating temperature range is -55°C to 175°C (TJ).
Additional Information
Series: HEXFET®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

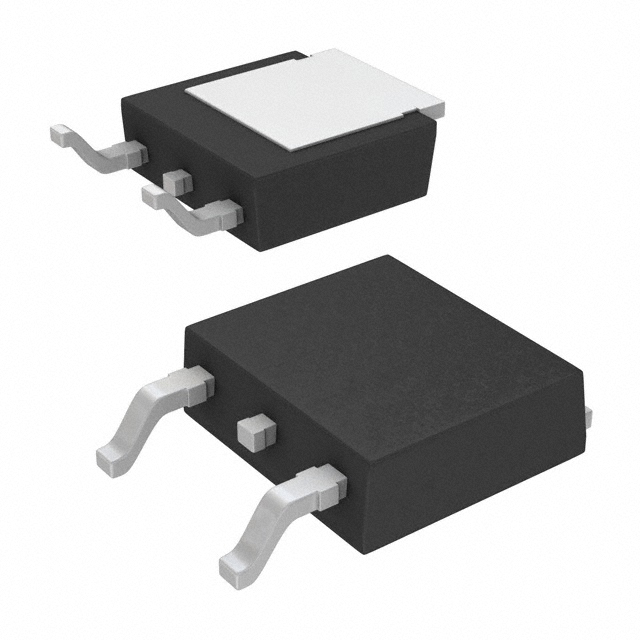

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
| Rds On (Max) @ Id, Vgs | 235mOhm @ 8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 110W (Tc) |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Supplier Device Package | TO-252AA (DPAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 200 V |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 830 pF @ 25 V |
