IRFP4768PBF
MOSFET N-CH 250V 93A TO247ACManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 250 V 93A (Tc) 520W (Tc) Through Hole TO-247AC
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 93A (Tc) |
| Rds On (Max) @ Id, Vgs | 17.5mOhm @ 56A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 520W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Supplier Device Package | TO-247AC |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 250 V |
| Gate Charge (Qg) (Max) @ Vgs | 270 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10880 pF @ 50 V |
Request a Quote
Clients Also Buy

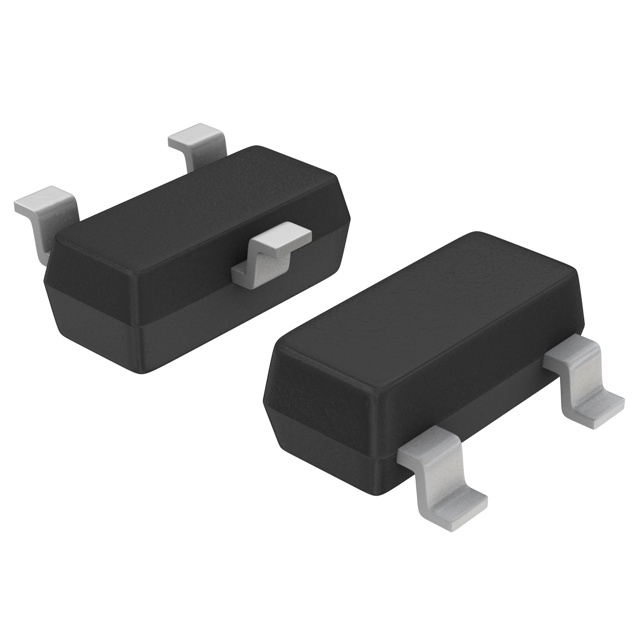

IRLML6401TRPBF
