IRFP4368PBFXKMA1
TRENCH 40<-<100VManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More

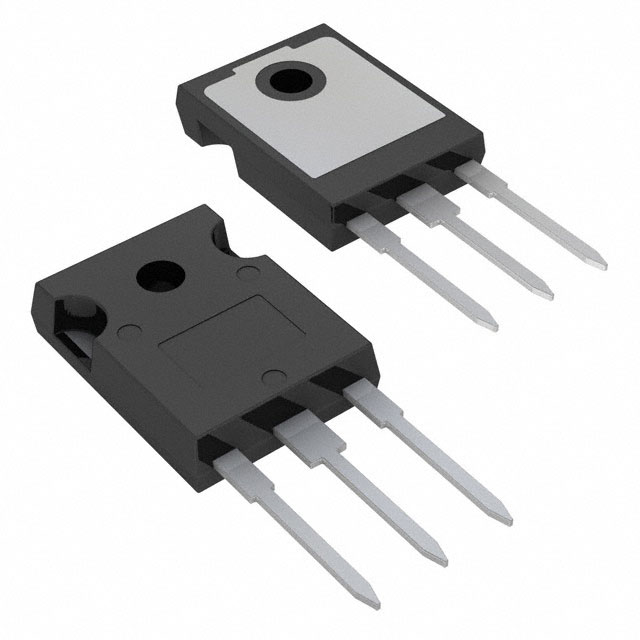

N-Channel 75 V 195A (Tc) 520W (Tc) Through Hole TO-247AC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 195A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.85mOhm @ 195A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 520W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-247AC |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 75 V |
| Gate Charge (Qg) (Max) @ Vgs | 570 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 19230 pF @ 50 V |
| Qualification | - |
