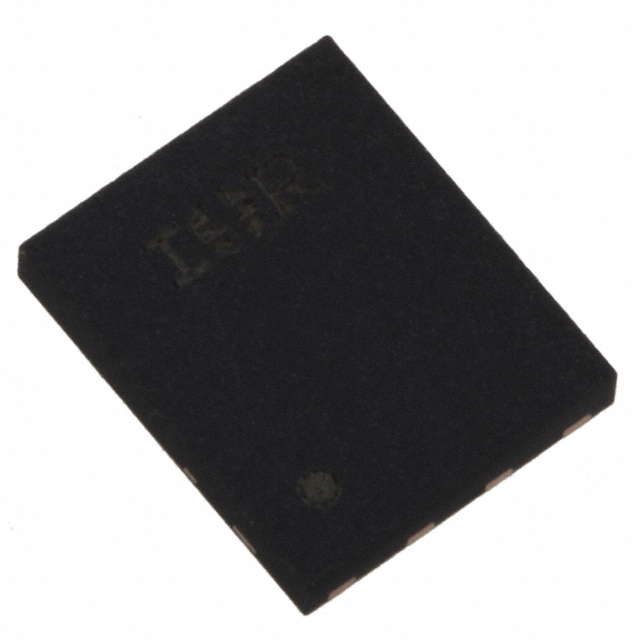

IRFH9310TRPBF
MOSFET P-CH 30V 21A/40A PQFNManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 21A (Ta), 40A (Tc) 3.1W (Ta) Surface Mount PQFN (5x6)
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 21A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta) |
| Vgs(th) (Max) @ Id | 2.4V @ 100µA |
| Supplier Device Package | PQFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 58 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5250 pF @ 15 V |
