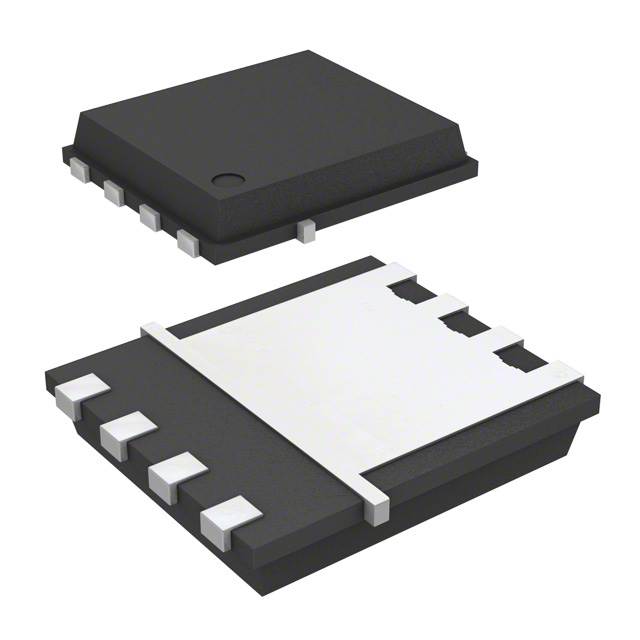

IRFH4234TRPBF
MOSFET N-CH 25V 22A PQFNManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 25 V 22A (Ta) 3.5W (Ta), 27W (Tc) Surface Mount PQFN (5x6)
Additional Information
Series: HEXFET®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta) |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 30A |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 27W (Tc) |
| Vgs(th) (Max) @ Id | 2.1V @ 25µA |
| Supplier Device Package | PQFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 25 V |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1011 pF @ 13 V |
