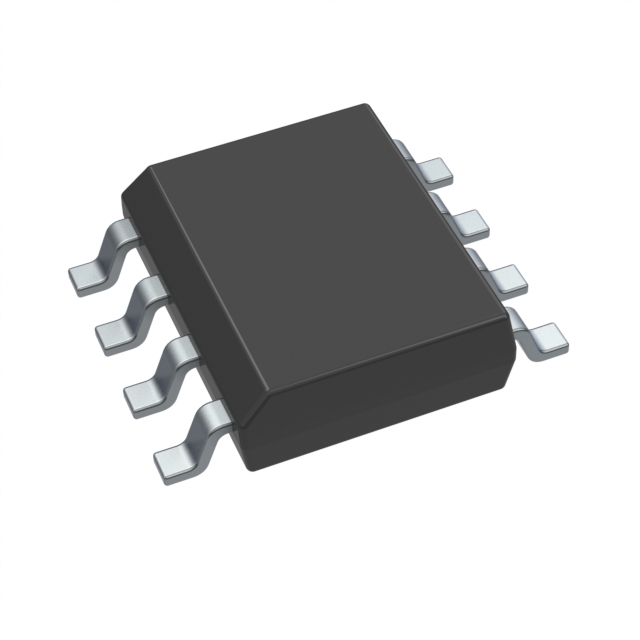

IRF7201TRPBFXTMA1

PLANAR <=40V

Manufacturer: Infineon Technologies

Categories: Single FETs, MOSFETs

Quality Control: Learn More

Infineon Technologies HEXFET® IRF7201TRPBFXTMA1 is an N-Channel Power MOSFET designed for efficient power switching applications. This surface mount device features a 30V drain-source voltage (Vdss) and a continuous drain current of 7.3A at 25°C. The device exhibits a low on-resistance of 30mOhm maximum at 7.3A and 10V Vgs, coupled with a maximum power dissipation of 2.5W (Tc). Key parameters include a gate charge (Qg) of 28nC maximum at 10V Vgs and an input capacitance (Ciss) of 550pF maximum at 25V Vds. The MOSFET operates within a temperature range of -55°C to 150°C (TJ). The PG-DSO-8-902 package, supplied on tape and reel, is suitable for automated assembly processes. This component is frequently utilized in automotive, industrial, and consumer electronics for power management and control circuits.

Additional Information

Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / Case8-SOIC (0.154"", 3.90mm Width)
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C7.3A (Tc)
Rds On (Max) @ Id, Vgs30mOhm @ 7.3A, 10V
FET Feature-
Power Dissipation (Max)2.5W (Tc)
Vgs(th) (Max) @ Id1V @ 250µA
Supplier Device PackagePG-DSO-8-902
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs28 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds550 pF @ 25 V
