IRF6646TR1PBF

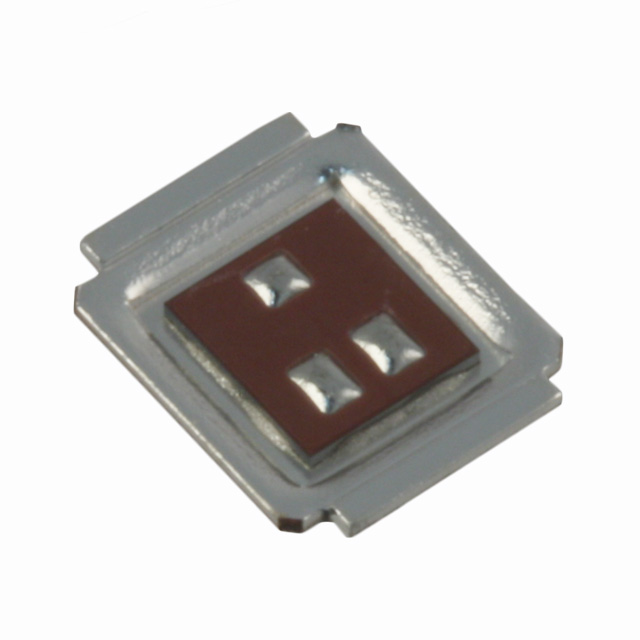

MOSFET N-CH 80V 12A DIRECTFETManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies HEXFET® N-Channel Power MOSFET, part number IRF6646TR1PBF. This DirectFET™ Isometric MN packaged component offers an 80V drain-source voltage and continuous drain current of 12A at ambient temperature and 68A at case temperature. Featuring a maximum Rds(on) of 9.5mOhm at 12A and 10V, this device supports gate-source voltages up to ±20V. Key parameters include a gate charge of 50nC at 10V and input capacitance of 2060pF at 25V. With power dissipation capabilities of 2.8W (Ta) and 89W (Tc), it operates across a junction temperature range of -40°C to 150°C. This MOSFET is commonly utilized in industrial automation, power supplies, and automotive applications.
Additional Information
Series: HEXFET®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric MN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 68A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 12A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Vgs(th) (Max) @ Id | 4.9V @ 150µA |
| Supplier Device Package | DIRECTFET™ MN |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2060 pF @ 25 V |
