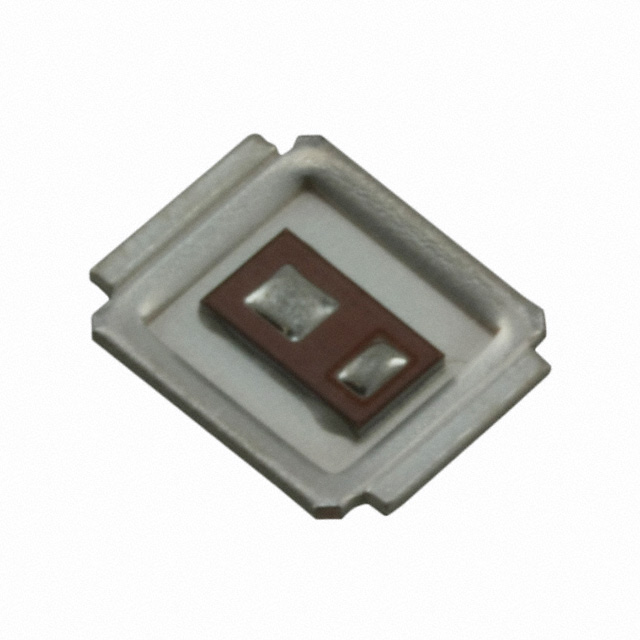

productimage

IRF6621TR1

MOSFET N-CH 30V 12A DIRECTFET

Manufacturer: Infineon Technologies

Categories: Single FETs, MOSFETs

Quality Control: Learn More

Infineon Technologies HEXFET® N-Channel MOSFET, part number IRF6621TR1, features a 30V drain-source voltage and a continuous drain current of 12A at ambient temperature, scaling to 55A at case temperature. This device offers a low on-resistance of 9.1mOhm maximum at 12A and 10V. The gate charge is specified at 17.5 nC maximum at 4.5V, with a gate drive voltage range of 4.5V to 10V. Input capacitance (Ciss) is 1460 pF maximum at 15V. Designed for surface mounting, it is housed in a DirectFET™ Isometric SQ package. The component’s robust thermal capabilities are highlighted by a maximum power dissipation of 2.2W at ambient and 42W at case temperature. This MOSFET is suitable for applications in the automotive and industrial sectors requiring efficient power switching. It operates across a temperature range of -40°C to 150°C.

Additional Information

Series: HEXFET®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / CaseDirectFET™ Isometric SQ
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C12A (Ta), 55A (Tc)
Rds On (Max) @ Id, Vgs9.1mOhm @ 12A, 10V
FET Feature-
Power Dissipation (Max)2.2W (Ta), 42W (Tc)
Vgs(th) (Max) @ Id2.25V @ 250µA
Supplier Device PackageDIRECTFET™ SQ
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs17.5 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds1460 pF @ 15 V
