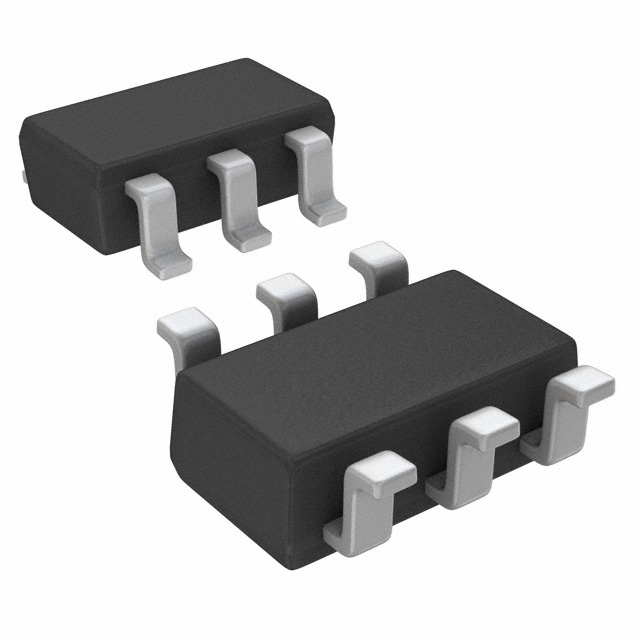

IRF5802TR
MOSFET N-CH 150V 0.9A 6-TSOPManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies MOSFET N-Channel, part number IRF5802TR, offers a 150V drain-source voltage and 900mA continuous drain current at 25°C. This device features a low on-resistance of 1.2 Ohms maximum at 540mA and 10V gate-source voltage. The gate charge is specified at 6.8 nC maximum at 10V, with input capacitance Ciss reaching 88 pF maximum at 25V. Packaged in a Micro6™ (TSOP-6), this surface-mount component is suitable for applications in industrial and consumer electronics. It utilizes Metal Oxide technology and is supplied in Cut Tape packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 900mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 540mA, 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Supplier Device Package | Micro6™(TSOP-6) |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 6.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 88 pF @ 25 V |
