IPWS65R050CFD7AXKSA1
MOSFET N-CH 650V 45A TO247-3-41Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 45A (Tc) 227W (Tc) Through Hole PG-TO247-3-41
Additional Information
Series: CoolMOS™ CFD7ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 24.8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 227W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 1.24mA |
| Supplier Device Package | PG-TO247-3-41 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4975 pF @ 400 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
IPW65R035CFD7AXKSA1
MOSFET N-CH 650V 63A TO247-3-41

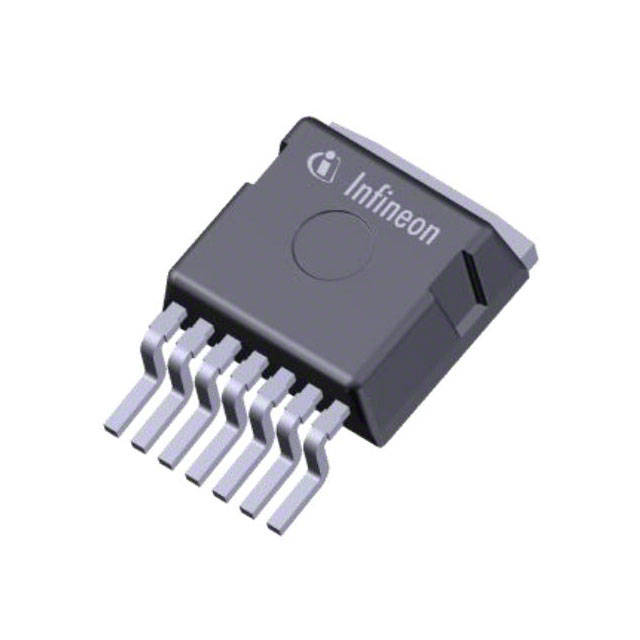

IPBE65R050CFD7AATMA1
