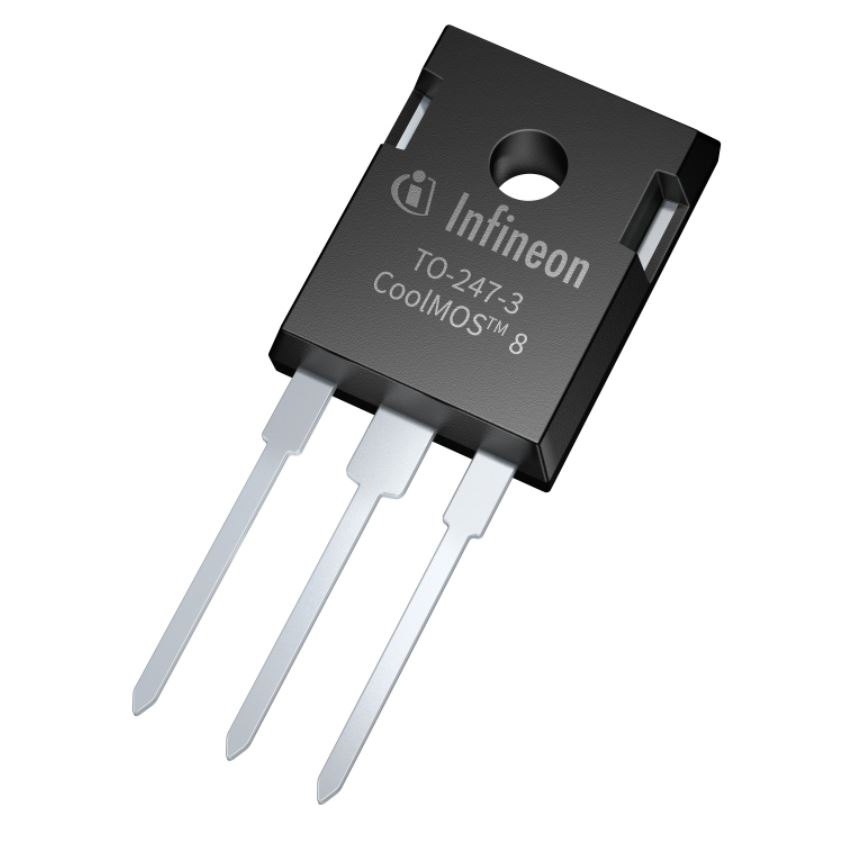

IPW60R016CM8XKSA1
IPW60R016CM8XKSA1Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 123A (Tc) 521W (Tc) Through Hole PG-TO247-3-U06
Additional Information
Series: CoolMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 123A (Tc) |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 62.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 521W (Tc) |
| Vgs(th) (Max) @ Id | 4.7V @ 1.48mA |
| Supplier Device Package | PG-TO247-3-U06 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 171 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7545 pF @ 400 V |
| Qualification | - |
