IPP65R115CFD7AAKSA1

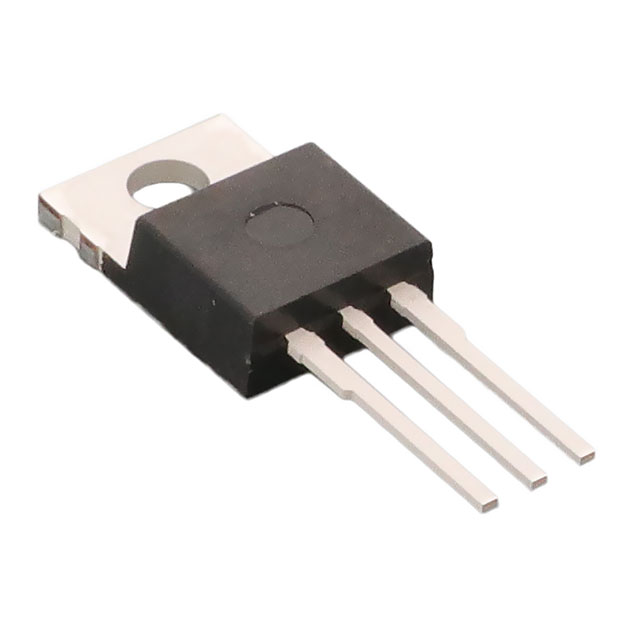

MOSFET N-CH 650V 21A TO220-3Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 21A (Tc) 114W (Tc) Through Hole PG-TO220-3
Additional Information
Series: CoolMOS™ CFD7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 21A (Tc) |
| Rds On (Max) @ Id, Vgs | 115mOhm @ 9.7A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 114W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 490µA |
| Supplier Device Package | PG-TO220-3 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1950 pF @ 400 V |
| Qualification | AEC-Q101 |
