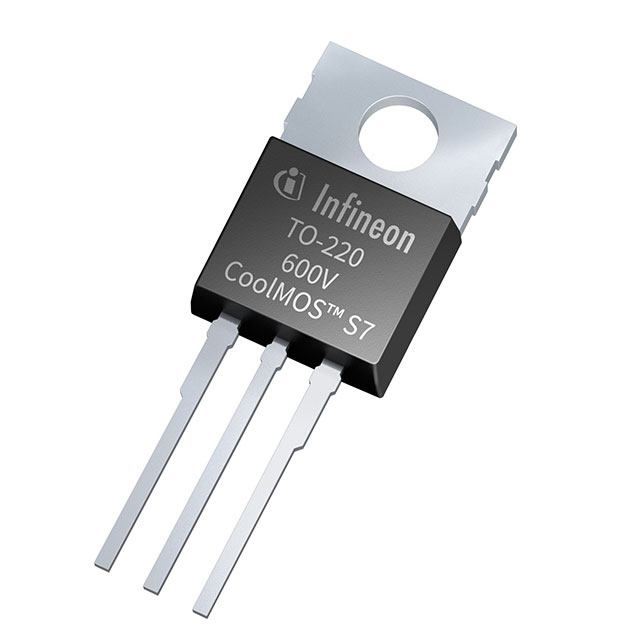

IPP60R065S7XKSA1
HIGH POWER_NEW PG-TO220-3Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 8A (Tc) 167W (Tc) Through Hole PG-TO220-3-1
Additional Information
Series: CoolMOS™ S7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 8A, 12V |
| FET Feature | - |
| Power Dissipation (Max) | 167W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 490µA |
| Supplier Device Package | PG-TO220-3-1 |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 12 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1932 pF @ 300 V |
Request a Quote
Clients Also Buy

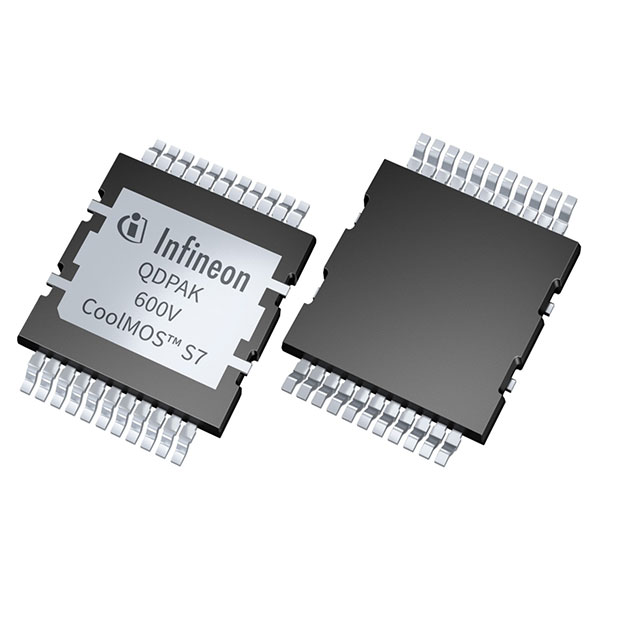

IPDQ60R022S7XTMA1
HIGH POWER_NEW PG-HDSOP-22
IPDQ60R017S7XTMA1
MOSFET

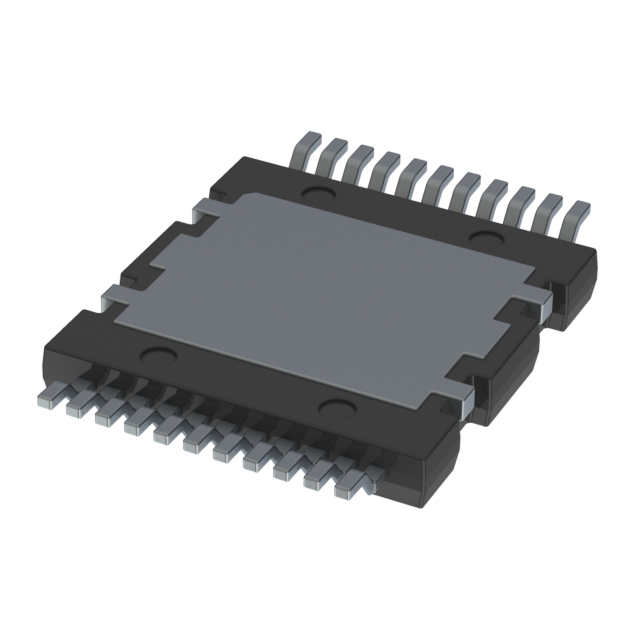

IPQC60R040S7XTMA1
