IPP139N08N3GXKSA1
N-CHANNEL POWER MOSFETManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More

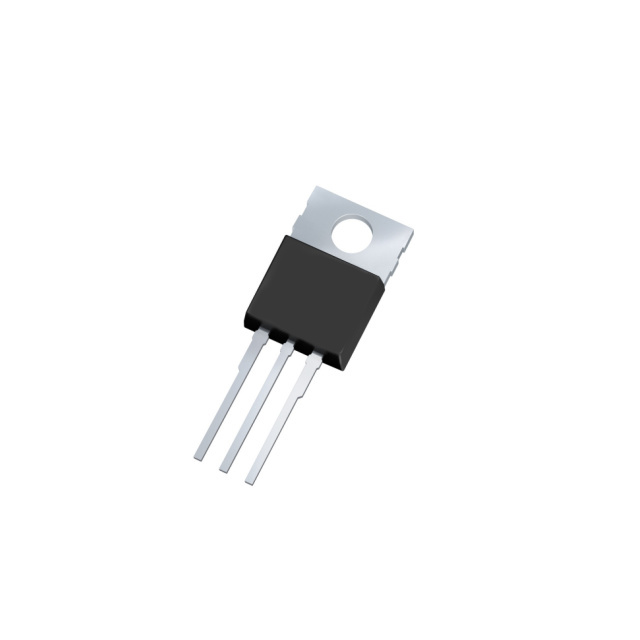

N-Channel 80 V 45A (Tc) 79W (Tc) Through Hole PG-TO220-3
Additional Information
Series: OptiMOS™ 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
| Rds On (Max) @ Id, Vgs | 13.9mOhm @ 45A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 79W (Tc) |
| Vgs(th) (Max) @ Id | 3.5V @ 33µA |
| Supplier Device Package | PG-TO220-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1730 pF @ 40 V |
Request a Quote
