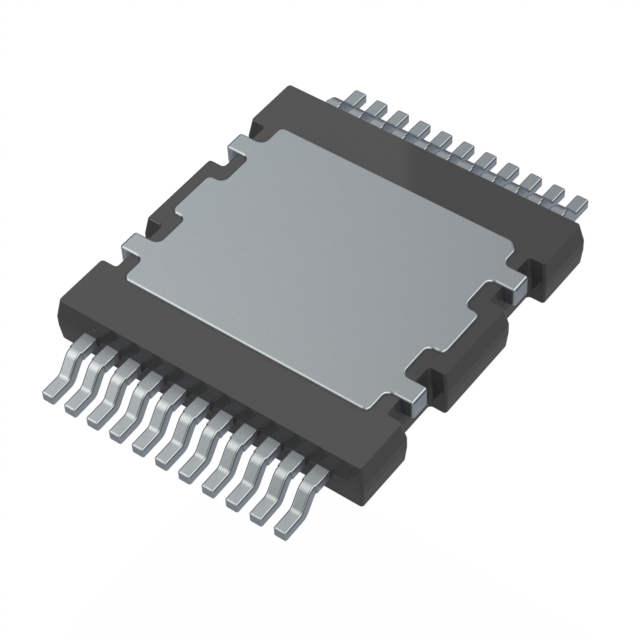

IPDQ65R017CFD7AXTMA1
AUTOMOTIVE_COOLMOSManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 136A (Tc) 694W (Tc) Surface Mount PG-HDSOP-22-1
Additional Information
Series: CoolMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 22-PowerBSOP Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 136A (Tc) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 61.6A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 694W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 3.08mA |
| Supplier Device Package | PG-HDSOP-22-1 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 236 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 12338 pF @ 400 V |
| Qualification | AEC-Q101 |
