IPDD60R102G7XTMA1
MOSFET N-CH 600V 23A HDSOP-10Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 23A (Tc) 139W (Tc) Surface Mount PG-HDSOP-10-1
Additional Information
Series: CoolMOS™ G7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-PowerSOP Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Rds On (Max) @ Id, Vgs | 102mOhm @ 7.8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 139W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 390µA |
| Supplier Device Package | PG-HDSOP-10-1 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1320 pF @ 400 V |
Request a Quote
Clients Also Buy

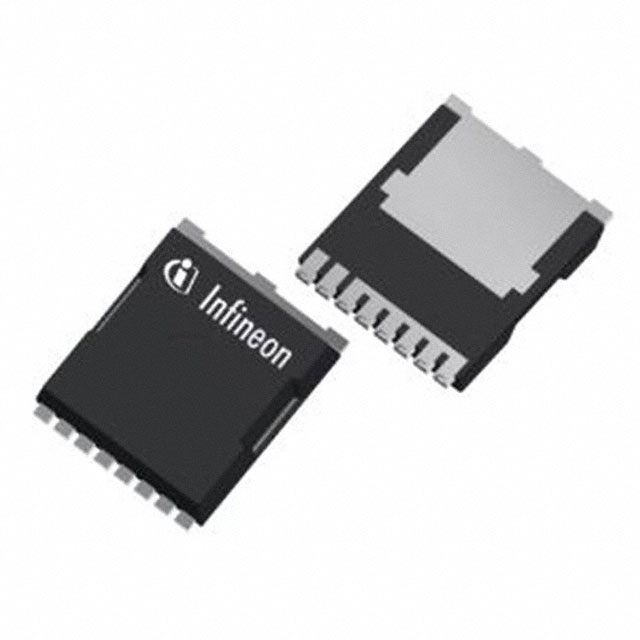

IPT60R050G7XTMA1
