IPD60R600PFD7SAUMA1
CONSUMER PG-TO252-3Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 6A (Tc) 31W (Tc) Surface Mount PG-TO252-3
Additional Information
Series: CoolMOS™ PFD7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 1.7A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 31W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 80µA |
| Supplier Device Package | PG-TO252-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 8.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 344 pF @ 400 V |
Request a Quote
Clients Also Buy
IPLK60R360PFD7ATMA1
MOSFET N-CH 600V 13A THIN-PAK

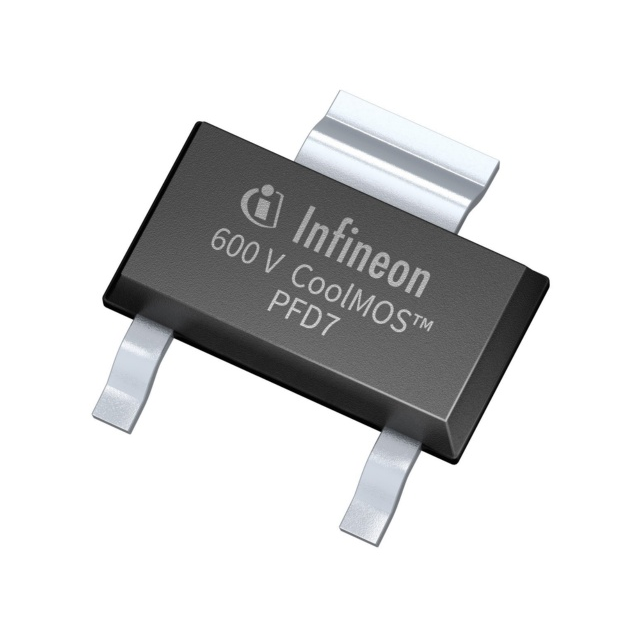

IPN60R1K0PFD7SATMA1
