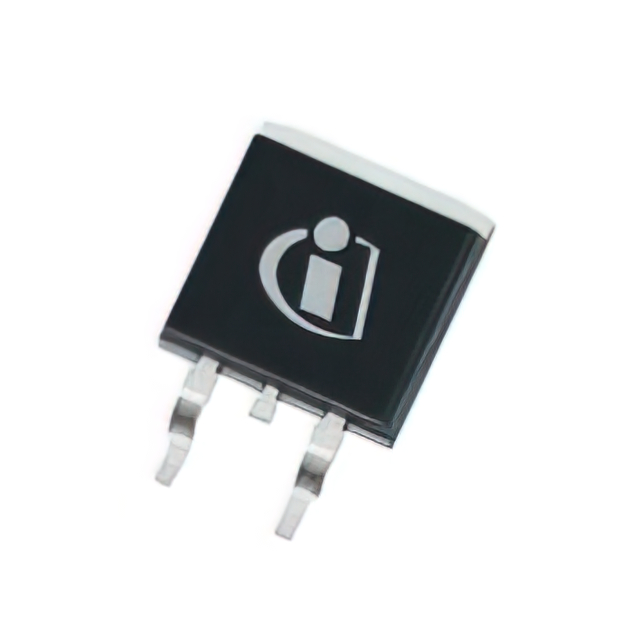

IPB022N12NM6ATMA1
TRENCH >=100VManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 120 V 29A (Ta), 167A (Tc) 3.8W (Ta), 395W (Tc) Surface Mount PG-TO263-3-2
Additional Information
Series: OptiMOS™ 6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 167A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 100A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 395W (Tc) |
| Vgs(th) (Max) @ Id | 3.6V @ 275µA |
| Supplier Device Package | PG-TO263-3-2 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 120 V |
| Gate Charge (Qg) (Max) @ Vgs | 141 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 11000 pF @ 60 V |
| Qualification | - |
