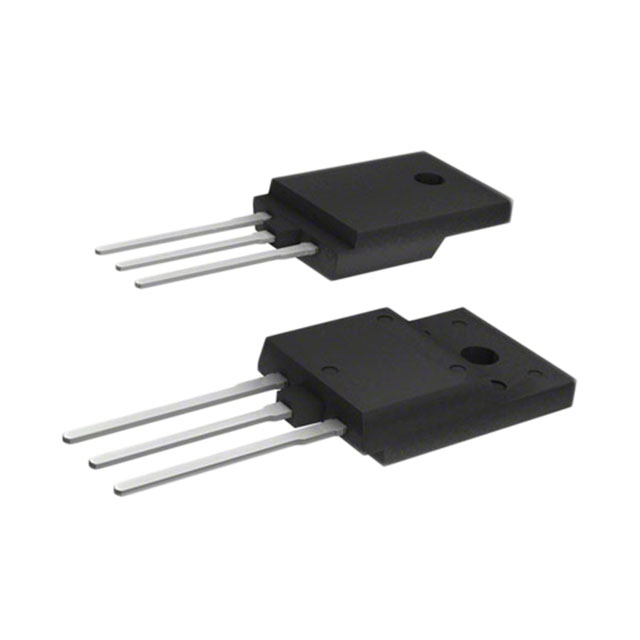

IPA50R950CEXKSA2
MOSFET N-CH 500V 3.7A TO220Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 500 V 3.7A (Tc) 25.7W (Tc) Through Hole PG-TO220-3-FP
Additional Information
Series: CoolMOS™ CERoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Tc) |
| Rds On (Max) @ Id, Vgs | 950mOhm @ 1.2A, 13V |
| FET Feature | - |
| Power Dissipation (Max) | 25.7W (Tc) |
| Vgs(th) (Max) @ Id | 3.5V @ 100µA |
| Supplier Device Package | PG-TO220-3-FP |
| Drive Voltage (Max Rds On, Min Rds On) | 13V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 231 pF @ 100 V |
