IMZ120R045M1XKSA1

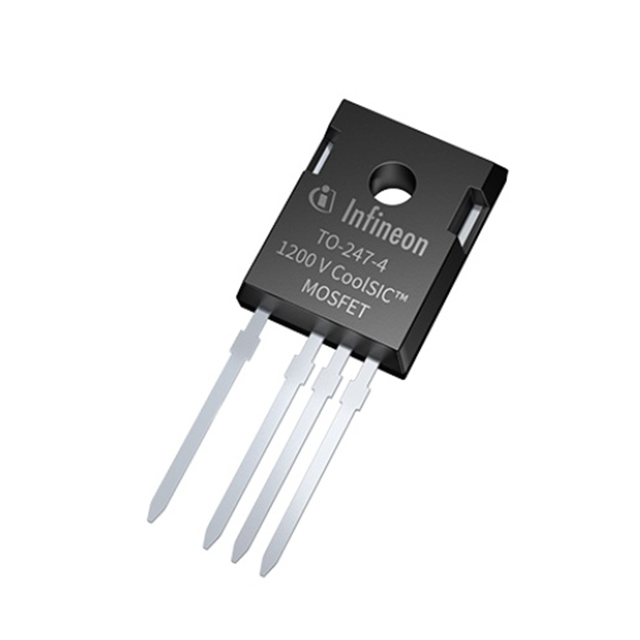

SICFET N-CH 1200V 52A TO247-4Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies CoolSiC™ IMZ120R045M1XKSA1 is an N-channel SiCFET designed for high-performance applications. This device boasts a Drain-to-Source Voltage (Vdss) of 1200 V and a continuous drain current (Id) of 52 A at 25°C (Tc), with a maximum power dissipation of 228 W (Tc). The Rds On is specified at a maximum of 59 mOhm at 20 A and 15 V gate-source voltage. Key features include integrated current sensing, enabling precise monitoring of device operation. The gate charge (Qg) is a maximum of 52 nC at 15 V, and input capacitance (Ciss) is 1900 pF at 800 V. This component is housed in a PG-TO247-4-1 package and supports through-hole mounting. The operating temperature range is -55°C to 175°C (TJ). Applications for this technology are found in electric vehicles, industrial power supplies, and renewable energy systems.
Additional Information
Series: CoolSiC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 52A (Tc) |
| Rds On (Max) @ Id, Vgs | 59mOhm @ 20A, 15V |
| FET Feature | Current Sensing |
| Power Dissipation (Max) | 228W (Tc) |
| Vgs(th) (Max) @ Id | 5.7V @ 10mA |
| Supplier Device Package | PG-TO247-4-1 |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Vgs (Max) | +20V, -10V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 15 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1900 pF @ 800 V |
