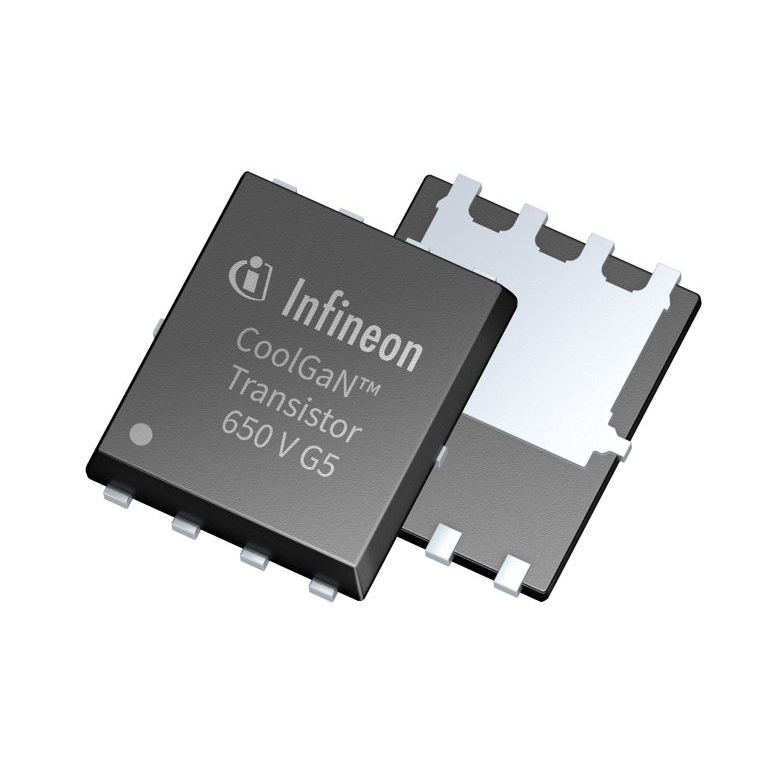

IGLR65R270D2XUMA1
IGLR65R270D2XUMA1Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 7.2A (Tc) 28W (Tc) Surface Mount
Additional Information
Series: CoolGaN™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 7.2A (Tc) |
| Rds On (Max) @ Id, Vgs | - |
| FET Feature | - |
| Power Dissipation (Max) | 28W (Tc) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Vgs (Max) | -10V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 3 V |
| Input Capacitance (Ciss) (Max) @ Vds | 74 pF @ 400 V |
| Qualification | - |
