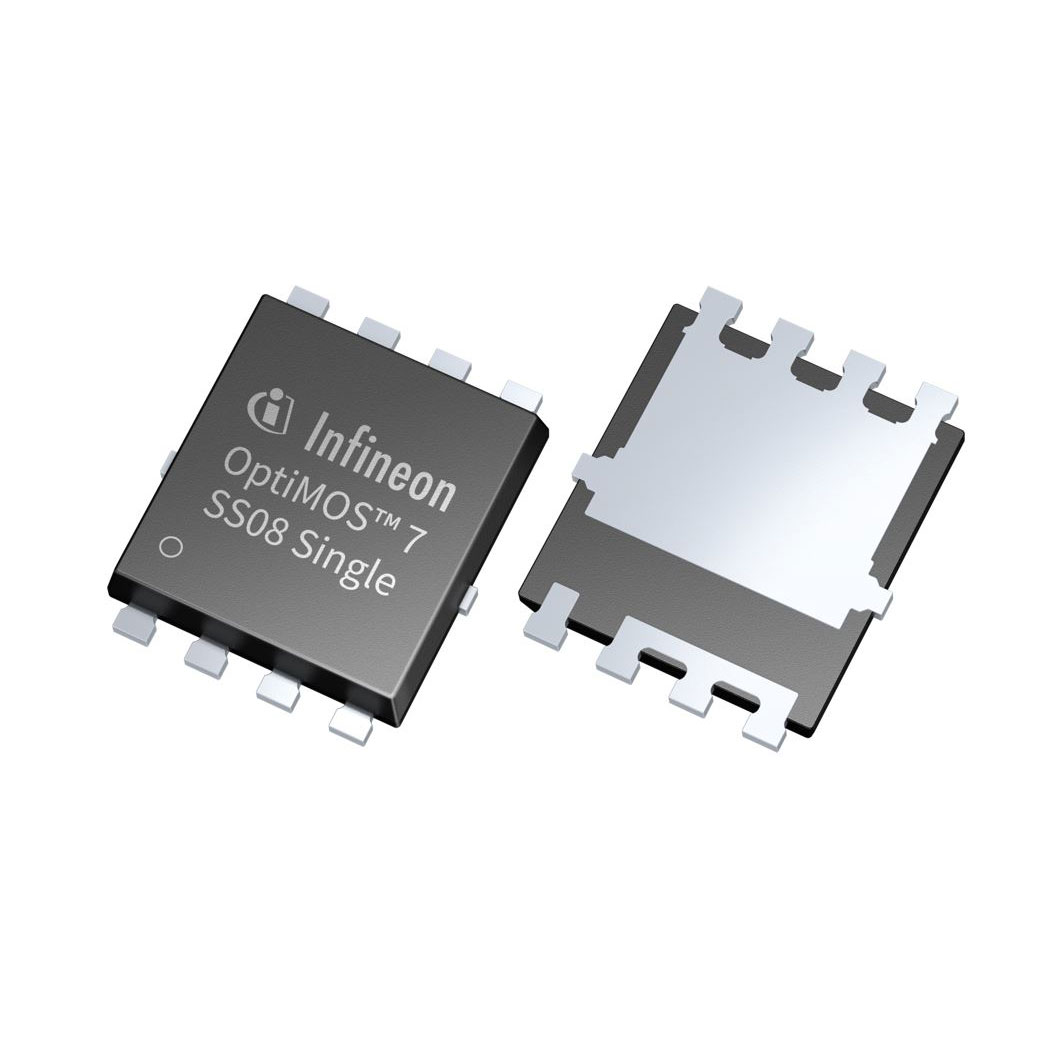

IAUCN04S7L011ATMA1
MOSFET_(20V 40V)Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 222A (Tj) 105W (Tc) Surface Mount PG-TDSON-8-34
Additional Information
Series: OptiMOS™ 7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 222A (Tj) |
| Rds On (Max) @ Id, Vgs | 1.13mOhm @ 60A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 105W (Tc) |
| Vgs(th) (Max) @ Id | 1.8V @ 45µA |
| Supplier Device Package | PG-TDSON-8-34 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4240 pF @ 20 V |
| Qualification | AEC-Q101 |
