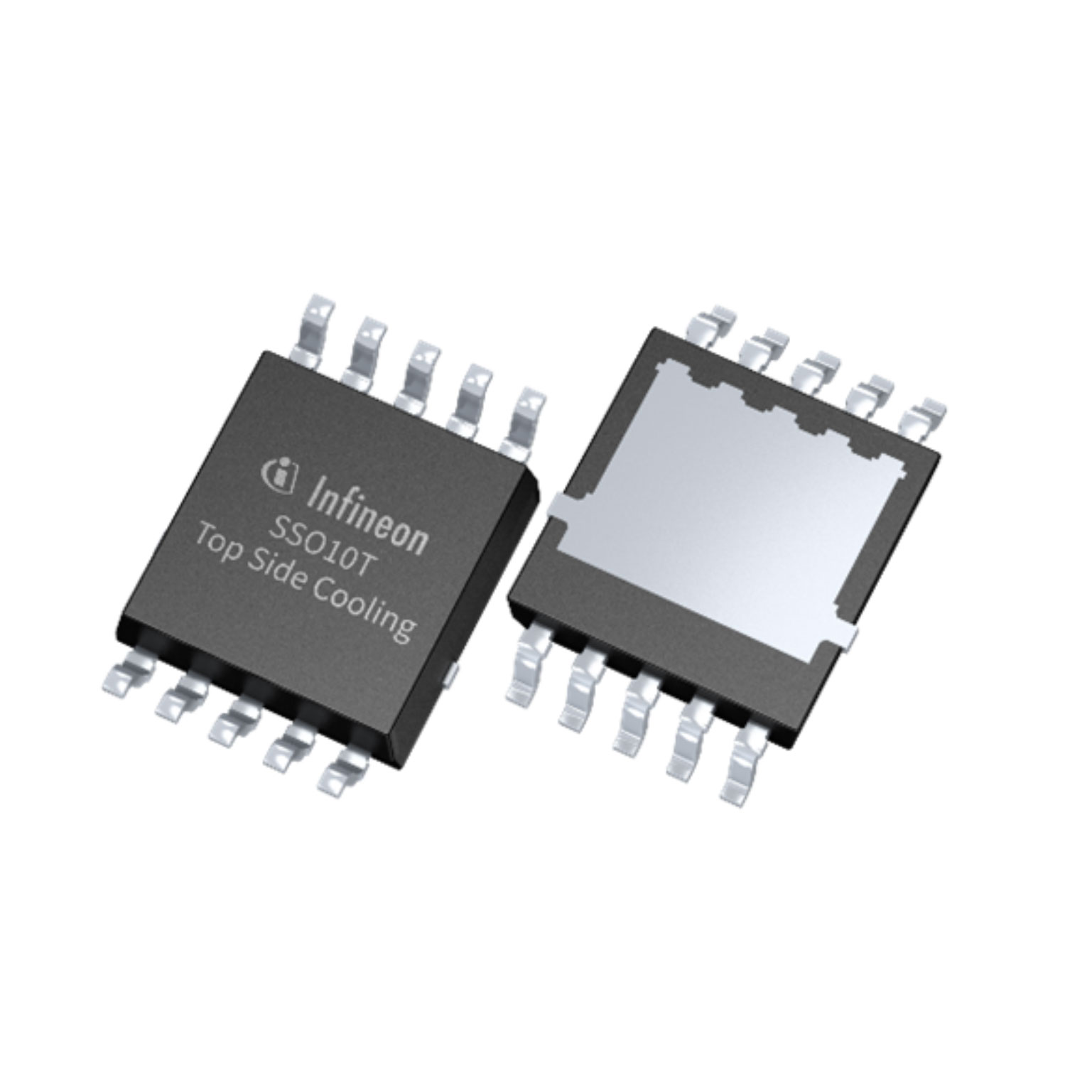

IAUCN04S6N017TATMA1
MOSFET_(20V 40V)Manufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 58A (Ta), 120A (Tj) 103W (Tc) Surface Mount PG-LHDSO-10-1
Additional Information
Series: OptiMOS™ 6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 10-LSOP (0.216"", 5.48mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 58A (Ta), 120A (Tj) |
| Rds On (Max) @ Id, Vgs | 1.73mOhm @ 60A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 103W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 40µA |
| Supplier Device Package | PG-LHDSO-10-1 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3250 pF @ 25 V |
| Qualification | AEC-Q101 |
